Q-Kurven Material 17
|
Material 17 | ||
|
μi(reference) |
4 |
|
|
Farbe |
Blue/Yellow | |
|
Density |
4.8 gm/cm3 | |
|
Bsat |
14.4 kG | |
|

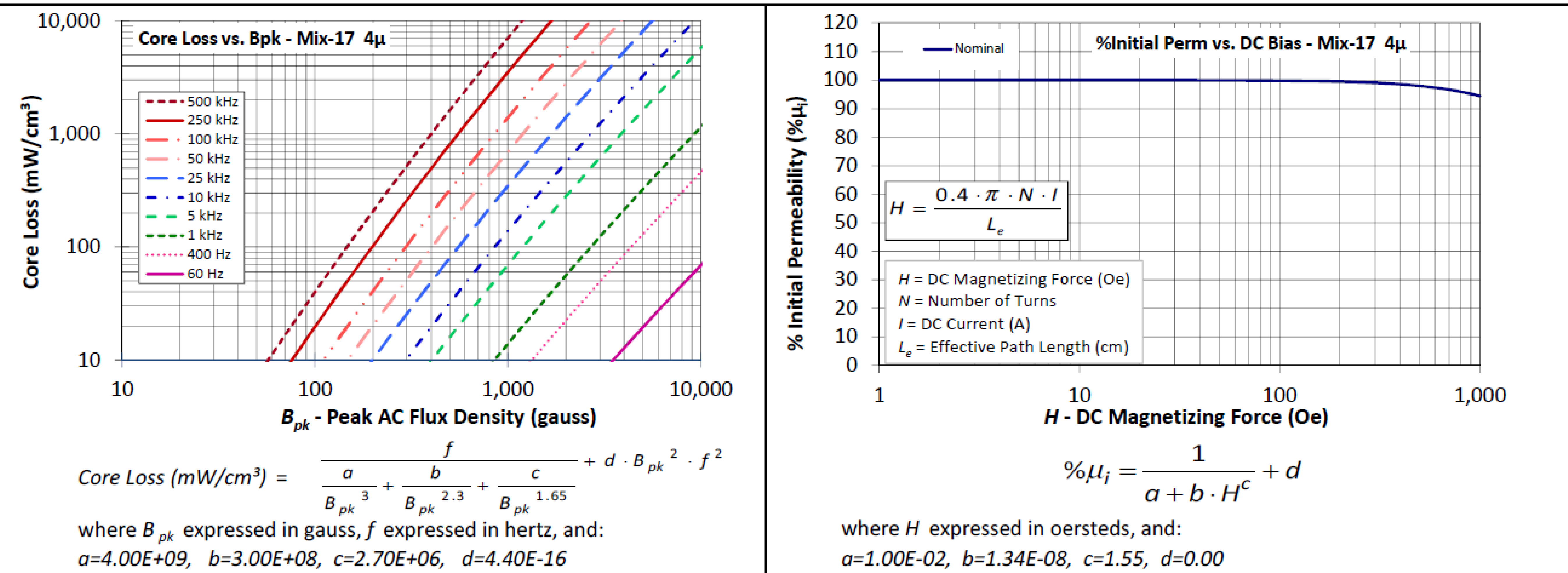

Core Loss (100kHz, 140g) |
18 mW/cm³ (nom) 22 mW/cm³ (max) | |
|
%Perm at DC Bias (200 Oe) |
99.5% (nom) 99.4% (min) | |
|
