Q-Kurven Material 75 Serienkerne
|
Größen und Permeabilitäten | |||
|
Toroid OD |
26µ |
40µ |
60µ |
|
27 mm |
75-106-26 |
75-106-40 |
75-106-60 |
|
47 mm |
75-184-26 |
75-184-40 |
75-184-60 |
|
57 mm |
75-200-26 |
75-200-40 |
75-20060 |
|
DC Bias and Core Loss | |||
|
Permeabilität | |||
|
|
26µ |
40µ |
60µ |
|

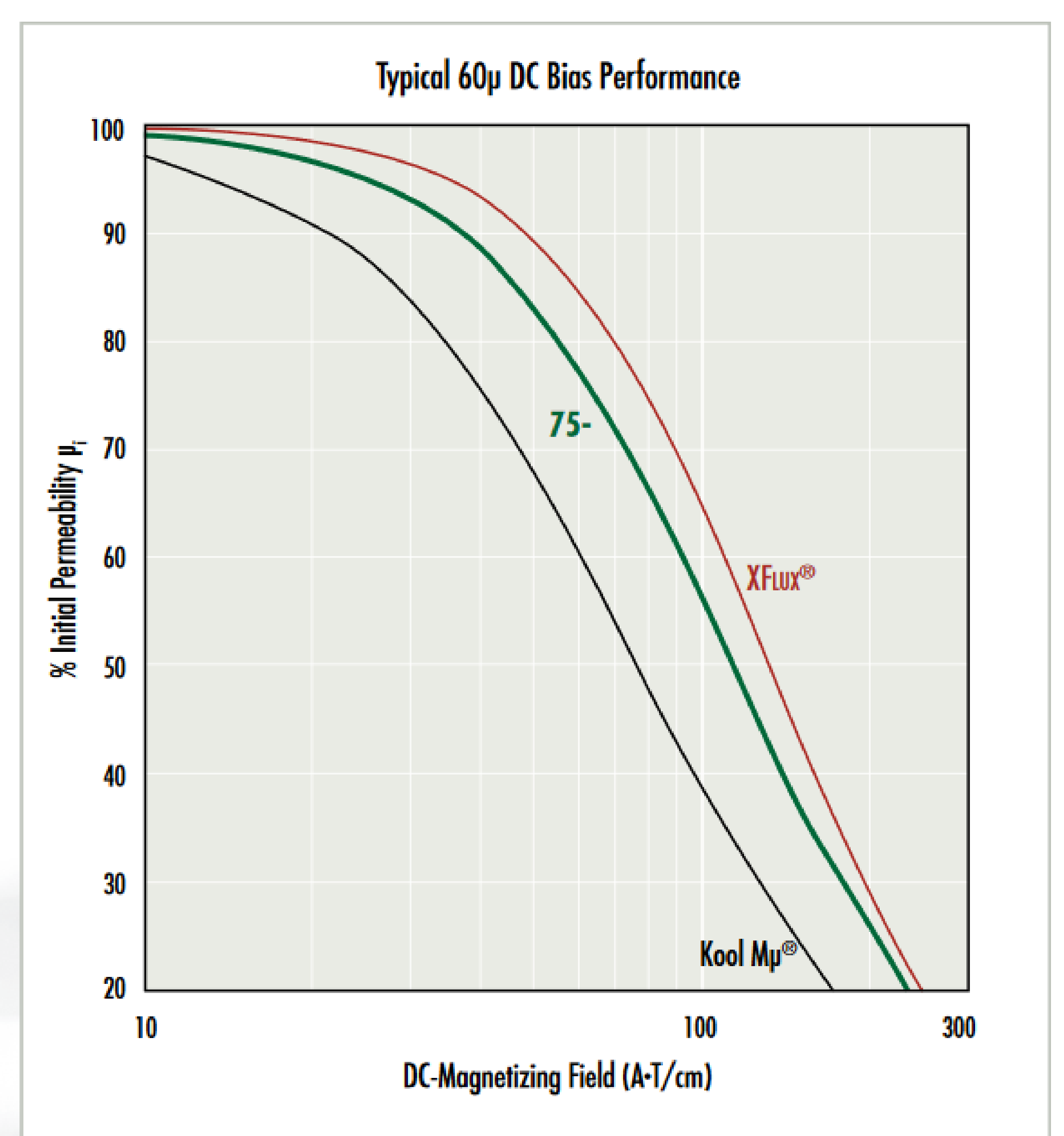

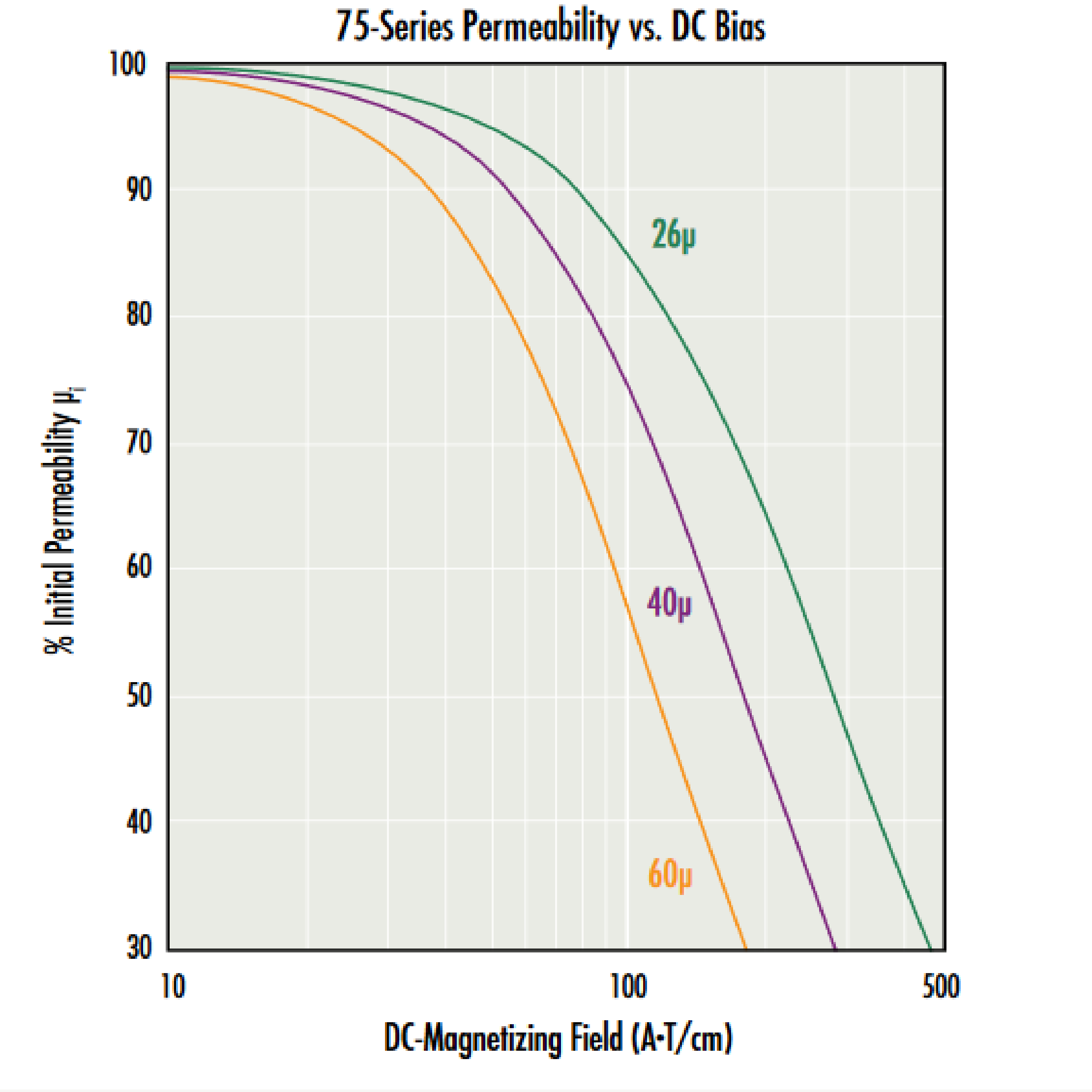

DC Bias (A-T/cm |
| ||
|
80% Rolloff |
128 |
80 |
56 |
|
50% Rolloff |
282 |
183 |
115 |
|

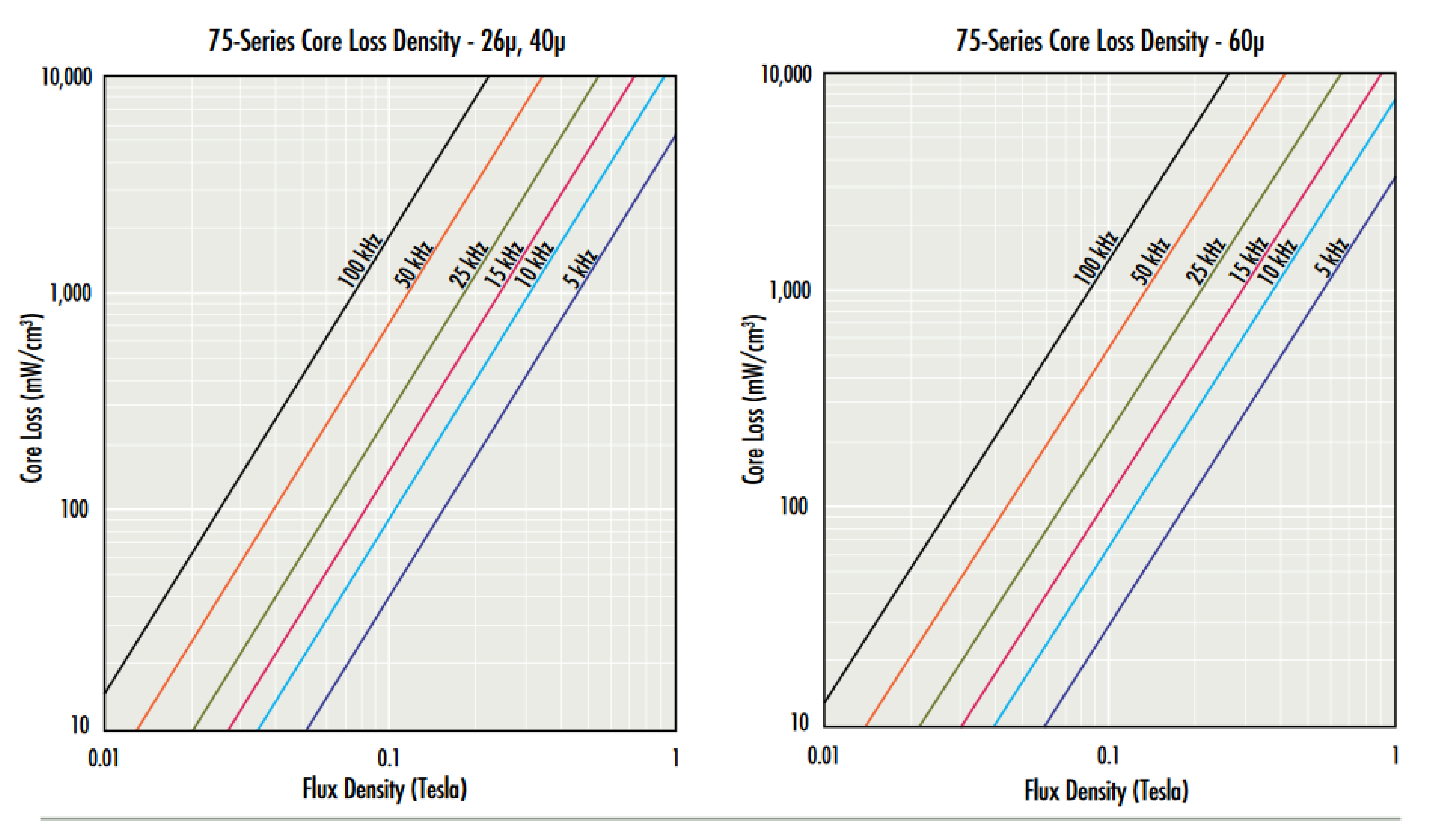

Core Loss (mW/cm³ |
| ||
|
100 mT 50 kHz |
700 |
676 |
537 |
|
100 mT 100 kHz |
1900 |
1860 |
1425 |
