T80-52



-52 Material: Dieses Material hat geringere Kernverluste bei hoher Frequenz und die gleiche Durchlässigkeit wie das -26 und -36  Material. Es ist beliebt für Hochfrequenz-Choke-Designs und in einer Vielzahl von Geometrien verfügbar.

‐52 Material: This material has lower core losses at high frequency and the same permeability as the ‐26 and -36 Material. It is popular for high frequency choke designs and available in a wide variety of geometries.

Material 52 (Permeabilität 75)

50/60 Hz- Differential mode EMI Line-Chokes

z.B.350 µ H -100 Umdrehungen=35,0nH/N²

IRON POWDER TOROIDAL CORES FOR POWER AND AC LINE FILTER

Preis auf Anfrage

Lieferzeit auf Anfrage







Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T80-52

Grün/

Blau

20.19

12.57

6.35

µ 75

420

±10%

(>)50 kHz

8.3 gramm

PC



AL value (nominal)

42 nH/ N²

μi (reference)



µ 75

Density gm/cm3

7.0

Test Winding

N=100, #28 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.10  V

Coating Type

Green/Blue Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

5.14 cm

0.231 cm²

1.19 cm³

1.14 cm²

15 cm²

2.86 cm



Core Loss

BpK

140 G

Frequenzy

100 kHz

Core Loss (nominal)

58.0 mW/cm³

Core Loss (maximum)

67.0mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=1.00E+09, b=1.10E+08, c=2.10E+06, d=6.90E-14

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

50 Oe

61.6%

53.4%

where H expressed in oersteds, and:

a=1.00E-02, b=4.66E-06, c=1.84, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

10

13

17

22

28

35

44

56

70

88

110

RDC

(Ω)

0.9 m

1.9 m

4.0 m

8.3 m

16.8 m

33.3 m

66.7 m

135 m

268.3 m

536.4 m

1.1

Full Winding

Turns

9

14

22

34

53

82

127

197

305

472

731

RDC

(Ω)

0.8 m

2.1 m

5.2 m

12.8 m

31.8 m

78.1 m

192.5 m

474.8 m

1.2

2.9

7.1



t94-0

T94-0

MATERIAL 0 (Permeabilität 1)

Dieses Material wird am häufigsten für Frequenzen oberhalb 200 MHz benutzt.



Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T94-0

Braun

23.93

14.22

7.92

µ 1

10.6

Ref Only

50-300 MHz

4.8 gramm

RF



AL value (nominal)

1.06 nH/ N²

μi (reference)



µ 1

Density gm/cm3

N/A

          Test Winding

N=100, #28 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.067  V

Coating Type

Tan/Tan Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

5.97 cm

0.369 cm²

2.16 cm³

1.48 cm²

21 cm²

3.47 cm



Core Loss

BpK

140 G

Frequenzy

100 kHz

Core Loss (nominal)

0 mW/cm³

Core Loss (maximum)

0 mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=1.00E+99, b=1.00E+99, c=1.00E+99, d=0.00E+00

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

100.0%

100.0%

where H expressed in oersteds, and:

a=1.00E-02, b=0.00E+00, c=0.00, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

25

32

40

51

64

80

100

126

RDC(Ω)

1.4 m

2.7 m

5.7 m

11.4 m

23.2 m

46.2 m

93.6 m

186.9 m

371.5 m

738.5 m

1.5

Full Winding

Turns

12

19

29

44

69

106

165

255

394

610

944

RDC(Ω)

1.4 m

3.4 m

8.3 m

20.1 m

50.1 m

122.4 m

302.9 m

744.6 m

1.8

4.5

11.1

t94-1

T94-1

MATERIAL 1 (Permeabilität 20)

Ein "C"-gepulvertes Carbonyleisenmaterial, das dem Material '13' sehr ähnelt, aber einen höheren Volumenwiderstand und eine größere Stabilität aufweist.

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T94-1

Blau

23.93

14.22

7.92

µ 20

160

±10%

0.05-5 MHz

14 gramm

RF



AL value (nominal)

16 nH/ N²

μi (reference)



µ 20

Density gm/cm3

6.4

          Test Winding

N=100, #28 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.16  V

Coating Type

Blue Clear Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

5.97 cm

0.369 cm²

2.16 cm³

1.48 cm²

21 cm²

3.47 cm



Core Loss

BpK

140 G

Frequenzy

100 kHz

Core Loss (nominal)

31 mW/cm³

Core Loss (maximum)

36 mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=1.90E+09, b=2.00E+08, c=9.00E+05, d=4.30E-15

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

82.2%

78.0%

where H expressed in oersteds, and:

a=1.00E-02, b=1.14E-06, c=1.43, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

25

32

40

51

64

80

100

126

RDC(Ω)

1.4 m

2.7 m

5.7 m

11.4 m

23.2 m

46.2 m

93.6 m

186.9 m

371.5 m

738.5 m

1.5

Full Winding

Turns

12

19

29

44

69

106

165

255

394

610

944

RDC(Ω)

1.4 m

3.4 m

8.3 m

20.1 m

50.1 m

122.4 m

302.9 m

744.6 m

1.8

4.5

11.1

t94-2

T94-2

MATERIAL 2 (Permeabilität 10)

Ein "E"-gepulvertes Carbonyleisenmaterial mit großem Volumenwiderstand und hoher Güte im Bereich von 1 MHz bei 30 MHz. Wird von allen Eisenpulvermaterialien am meisten verwendet.

-2 & -14 Materialien: Die geringe Permeabilität dieser Materialien führt zu einer niedrigeren AC-Flussdichte als andere Materialien ohne zusätzlichen Lückenverlust. Das -14 Material ist ähnlich -2 Material mit einer höheren Permeabilität.

-2, -4, -6 & -7 Materialien: Dies sind die beliebtesten Carbonyleisenmischungen. Sie bieten hohe Q-Werte bis zu 40 MHz und sind am beliebtesten für Amateurfunk und eine Vielzahl anderer Kommunikationsanwendungen. Sie sind auch nützlich für moderate Bandtransformatoren im Frequenzbereich von 200 bis 400 MHz



Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T94-2

Rot

23.93

14.22

7.92

µ 10

84

±5%

1-30 MHz

11 gramm

RF

PC



AL value (nominal)

8.4 nH/ N²

μi (reference)



µ 10

Density gm/cm3

5

           Test Winding

N=100, #28 AWG

Frequency

1 MHz

Voltage on Agilent 4284A

1.0  V

Coating Type

Red/Clear Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

5.97 cm

0.369 cm²

2.16 cm³

1.48 cm²

21 cm²

3.47 cm



Core Loss & Q

Q Test Winding

N=100, #28 AWG

Q Frequenzy

1.6 MHz

Q min on HP4342A

190

where Bpk expressed in gauss, f expressed in hertz, and:

a=4.00E+09, b=3.00E+08, c=2.70E+06, d=9.60E-16

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

95.9%

94.8%

where H expressed in oersteds, and:

a=1.00E-02, b=1.83E-07, c=1.46, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

25

32

40

51

64

80

100

126

RDC(Ω)

1.4 m

2.7 m

5.7 m

11.4 m

23.2 m

46.2 m

93.6 m

186.9 m

371.5 m

738.5 m

1.5

Full Winding

Turns

12

19

29

44

69

106

165

255

394

610

944

RDC(Ω)

1.4 m

3.4 m

8.3 m

20.1 m

50.1 m

122.4 m

302.9 m

744.6 m

1.8

4.5

11.1

T94-3

MATERIAL 3 (Permeabilität 35)

Ein "HP"-gepulvertes Carbonyleisenmaterial mit ausgezeichneter Stabilität und hoher Güte für niedrige Frequenzen um 50 kHz

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T94-3

Grau

23.93

14.22

7.92

µ 35

248

±10%

0.05-5 MHz

14

gramm

RF



AL value (nominal)

24.8 nH/ N²

μi (reference)



µ 35

Density gm/cm3

6.5

Test Winding

N=100, #28 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.16  V

Coating Type

Gray/Clear Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

5.97 cm

0.362 cm²

2.16 cm³

1.48 cm²

21 cm²

3.47 cm



Core Loss

Bpk

140 G

Frequenzy

100 kHz

Core Loss (nominal)

31 mW/cm³

Core Loss (maximum)

36 mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=1.90E+09, b=2.00E+08, c=9.00E+05, d=4.30E-15

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

60.1%

53.7%

where H expressed in oersteds, and:

a=1.00E-02, b=3.49E-06, c=1.43, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

25

32

40

51

64

80

100

126

RDC(Ω)

1.4 m

2.7 m

5.7 m

11.4 m

23.2 m

46.2 m

93.6 m

186.9 m

371.5 m

738.5 m

1.5

Full Winding

Turns

12

19

29

44

69

106

165

255

394

610

944

RDC(Ω)

1.4 m

3.4 m

8.3 m

20.1 m

50.1 m

122.4 m

302.9 m

744.6 m

1.8

4.5

11.1



Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T94-3

Grau

23.93

14.22

7.92

µ 35

248

±10%

0.05-5 MHz

14

gramm

RF



AL value (nominal)

24.8 nH/ N²

μi (reference)



µ 35

Density gm/cm3

6.5

Test Winding

N=100, #28 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.16  V

Coating Type

Gray/Clear Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

5.97 cm

0.362 cm²

2.16 cm³

1.48 cm²

21 cm²

3.47 cm



Core Loss

Bpk

140 G

Frequenzy

100 kHz

Core Loss (nominal)

31 mW/cm³

Core Loss (maximum)

36 mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=1.90E+09, b=2.00E+08, c=9.00E+05, d=4.30E-15

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

60.1%

53.7%

where H expressed in oersteds, and:

a=1.00E-02, b=3.49E-06, c=1.43, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

25

32

40

51

64

80

100

126

RDC(Ω)

1.4 m

2.7 m

5.7 m

11.4 m

23.2 m

46.2 m

93.6 m

186.9 m

371.5 m

738.5 m

1.5

Full Winding

Turns

12

19

29

44

69

106

165

255

394

610

944

RDC(Ω)

1.4 m

3.4 m

8.3 m

20.1 m

50.1 m

122.4 m

302.9 m

744.6 m

1.8

4.5

11.1





T94-6

MATERIAL 6 (Permeabilität 8)

Ein "SF"-gepulvertes Eisenmaterial, das dem Material "2" sehr ähnelt, aber verbesserte Güte für höhere Frequenzen bis 50 MHz aufweist.

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T94-6

Gelb

23.93

14.22

7.92

µ 8

70

±5%

2-50 MHz

11

gramm

RF



AL value (nominal)

7 nH/ N²

μi (reference)

µ 8

Density gm/cm3

5

          Test Winding

N=100, #28 AWG

Frequency

1 MHz

Voltage on Agilent 4284A

1.0  V

Coating Type

Yellow/Clear Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

5.97 cm

0.362 cm²

2.16 cm³

1.48 cm²

21 cm²

3.47 cm



Core Loss & Q

Q test winding

#N/A

Q Frequenzy

#N/A

Q min on HP4342A

#N/A

where Bpk expressed in gauss, f expressed in hertz, and:

a=4.00E+09, b=3.00E+08, c=2.70E+06, d=8.90E-16

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

98.1%

97.4%

where H expressed in oersteds, and:

a=1.00E-02, b=4.87E-08, c=1.57, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

25

32

40

51

64

80

100

126

RDC(Ω)

1.4 m

2.7 m

5.7 m

11.4 m

23.2 m

46.2 m

93.6 m

186.9 m

371.5 m

738.5 m

1.5

Full Winding

Turns

12

19

29

44

69

106

165

255

394

610

944

RDC(Ω)

1.4 m

3.4 m

8.3 m

20.1 m

50.1 m

122.4 m

302.9 m

744.6 m

1.8

4.5

11.1



t15

T94-6 10x

MATERIAL 6 (Permeabilität 8)

Ein "SF"-gepulvertes Eisenmaterial, das dem Material "2" sehr ähnelt, aber verbesserte Güte für höhere Frequenzen bis 50 MHz aufweist.

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T94-6

Gelb

23.93

14.22

7.92

µ 8

70

±5%

2-50 MHz

11

gramm

RF



AL value (nominal)

7 nH/ N²

μi (reference)

µ 8

Density gm/cm3

5

          Test Winding

N=100, #28 AWG

Frequency

1 MHz

Voltage on Agilent 4284A

1.0  V

Coating Type

Yellow/Clear Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

5.97 cm

0.362 cm²

2.16 cm³

1.48 cm²

21 cm²

3.47 cm



Core Loss & Q

Q test winding

#N/A

Q Frequenzy

#N/A

Q min on HP4342A

#N/A

where Bpk expressed in gauss, f expressed in hertz, and:

a=4.00E+09, b=3.00E+08, c=2.70E+06, d=8.90E-16

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

98.1%

97.4%

where H expressed in oersteds, and:

a=1.00E-02, b=4.87E-08, c=1.57, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

25

32

40

51

64

80

100

126

RDC(Ω)

1.4 m

2.7 m

5.7 m

11.4 m

23.2 m

46.2 m

93.6 m

186.9 m

371.5 m

738.5 m

1.5

Full Winding

Turns

12

19

29

44

69

106

165

255

394

610

944

RDC(Ω)

1.4 m

3.4 m

8.3 m

20.1 m

50.1 m

122.4 m

302.9 m

744.6 m

1.8

4.5

11.1

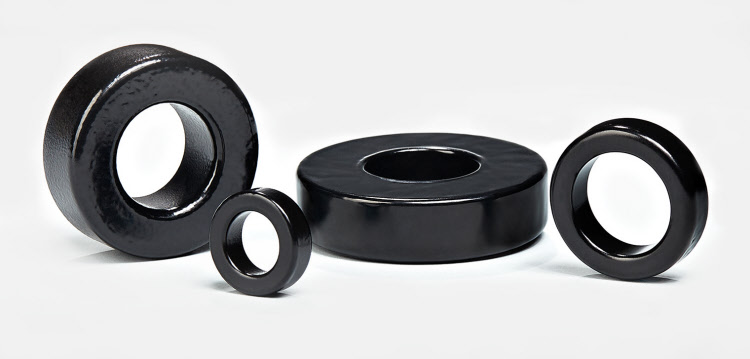

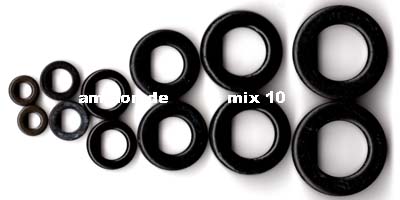

T94-10

MATERIAL 10 (Permeabilität 6)

Ein "W"-gepulvertes Carbonyleisenmaterial, das hohe Güte und Stabilität für Frequenzen bis 100 MHz aufweist.

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T94-10

Schwarz

23.93

14.22

7.92

µ 6

58

±5%

10-100 MHz

11

gramm

RF



AL value (nominal)

5.8 nH/ N²

μi (reference)

µ 6

Density gm/cm3

4.9

Test Winding

N=100, #28 AWG

Frequency

1 MHz

Voltage on Agilent 4284A

1.0  V

Coating Type

Black/Clear Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

5.97 cm

0.362 cm²

2.16 cm³

1.48 cm²

21 cm²

3.47 cm



Core Loss & Q

Q test winding

N=10, #20 AWG

Q Frequenzy

16 MHz

Q min on HP4342A

171

where Bpk expressed in gauss, f expressed in hertz, and:

a=4.00E+09, b=3.00E+08, c=2.70E+06, d=8.00E-16

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

99.6%

99.4%

where H expressed in oersteds, and:

a=1.00E-02, b=5.54E-09, c=1.69, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

25

32

40

51

64

80

100

126

RDC(Ω)

1.4 m

2.7 m

5.7 m

11.4 m

23.2 m

46.2 m

93.6 m

186.9 m

371.5 m

738.5 m

1.5

Full Winding

Turns

12

19

29

44

69

106

165

255

394

610

944

RDC(Ω)

1.4 m

3.4 m

8.3 m

20.1 m

50.1 m

122.4 m

302.9 m

744.6 m

1.8

4.5

11.1


t94-1

T94-11

MATERIAL 11 (Permeabilität 20)

Ein "C"-gepulvertes Carbonyleisenmaterial, das dem Material '13' sehr ähnelt, aber einen höheren Volumenwiderstand und eine größere Stabilität aufweist.

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T94-1

Blau

23.93

14.22

7.92

µ 20

160

±10%

0.05-5 MHz

14 gramm

RF

AL value (nominal)

16 nH/ N²

μi (reference)



µ 20

Density gm/cm3

6.4

          Test Winding

N=100, #28 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.16  V

Coating Type

Blue Clear Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

5.97 cm

0.369 cm²

2.16 cm³

1.48 cm²

21 cm²

3.47 cm



Core Loss

BpK

140 G

Frequenzy

100 kHz

Core Loss (nominal)

31 mW/cm³

Core Loss (maximum)

36 mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=1.90E+09, b=2.00E+08, c=9.00E+05, d=4.30E-15

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

82.2%

78.0%

where H expressed in oersteds, and:

a=1.00E-02, b=1.14E-06, c=1.43, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

25

32

40

51

64

80

100

126

RDC(Ω)

1.4 m

2.7 m

5.7 m

11.4 m

23.2 m

46.2 m

93.6 m

186.9 m

371.5 m

738.5 m

1.5

Full Winding

Turns

12

19

29

44

69

106

165

255

394

610

944

RDC(Ω)

1.4 m

3.4 m

8.3 m

20.1 m

50.1 m

122.4 m

302.9 m

744.6 m

1.8

4.5

11.1





T94-13

MATERIAL 13 (Permeabilität 35)

Ein "HP"-gepulvertes Carbonyleisenmaterial mit ausgezeichneter Stabilität und hoher Güte für niedrige Frequenzen um 50 kHz

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T94-13

Grau

23.93

14.22

7.92

µ 35

248

±10%

0.05-5 MHz

14

gramm

RF



AL value (nominal)

24.8 nH/ N²

μi (reference)



µ 35

Density gm/cm3

6.5

Test Winding

N=100, #28 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.16  V

Coating Type

Gray/Clear Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

5.97 cm

0.362 cm²

2.16 cm³

1.48 cm²

21 cm²

3.47 cm



Core Loss

Bpk

140 G

Frequenzy

100 kHz

Core Loss (nominal)

31 mW/cm³

Core Loss (maximum)

36 mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=1.90E+09, b=2.00E+08, c=9.00E+05, d=4.30E-15

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

60.1%

53.7%

where H expressed in oersteds, and:

a=1.00E-02, b=3.49E-06, c=1.43, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

25

32

40

51

64

80

100

126

RDC(Ω)

1.4 m

2.7 m

5.7 m

11.4 m

23.2 m

46.2 m

93.6 m

186.9 m

371.5 m

738.5 m

1.5

Full Winding

Turns

12

19

29

44

69

106

165

255

394

610

944

RDC(Ω)

1.4 m

3.4 m

8.3 m

20.1 m

50.1 m

122.4 m

302.9 m

744.6 m

1.8

4.5

11.1

T94-15

MATERIAL 15 (Permeabilität 25)

Ein "GS-6"-gepulvertes Eisenmaterial (Carbonyl), das gute Stabilität für kommerzielle Rundfunkfrequenzen bietet, wo hohe Güte und eine gleichmäßige Permeabilität erforderlich sind.

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T94-15

Rot/

Weiß

23.93

14.22

7.92

µ 25

200

±10%

0.1-2.0 MHz

14

gramm

RF



AL value (nominal)

20.0 nH/ N²

μi (reference)



µ 35

Density gm/cm3

6.4

         Test Winding

N=100, #28 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.16  V

Coating Type

Red/White Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

5.97 cm

0.362 cm²

2.16 cm³

1.48 cm²

21 cm²

3.47 cm



Core Loss

Bpk

140 G

Frequenzy

100 kHz

Core Loss (nominal)

32 mW/cm³

Core Loss (maximum)

36 mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=1.90E+09, b=2.00E+08, c=9.00E+05, d=5.00E-15

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

74.7%

69.4%

where H expressed in oersteds, and:

a=1.00E-02, b=1.78E-06, c=1.43, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

25

32

40

51

64

80

100

126

RDC(Ω)

1.4 m

2.7 m

5.7 m

11.4 m

23.2 m

46.2 m

93.6 m

186.9 m

371.5 m

738.5 m

1.5

Full Winding

Turns

12

19

29

44

69

106

165

255

394

610

944

RDC(Ω)

1.4 m

3.4 m

8.3 m

20.1 m

50.1 m

122.4 m

302.9 m

744.6 m

1.8

4.5

11.1

T94-17 10x

MATERIAL - 12/17 (Permeabilität 3)

Ein synthetisches Oxidmaterial, das eine mittlere Güte und Stabilität oberhalb von 100 MHz besitzt.

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T94-17

Blau/

Gelb

23.93

14.22

7.92

µ 4

29

±5%

20-200 MHz

11

gramm

RF

AL value (nominal)

2.9 nH/ N²

μi (reference)

µ 4

Density gm/cm3

4.8

Test Winding

N=100, #28 AWG

Frequency

1 MHz

Voltage on Agilent 4284A

1.0  V

Coating Type

Blue/Yellow Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

5.97 cm

0.362 cm²

2.16 cm³

1.48 cm²

21 cm²

3.47 cm



Core Loss & Q

Q test winding

N=10, #20 AWG

Q Frequenzy

40 MHz

Q min on HP4342A

180

where Bpk expressed in gauss, f expressed in hertz, and:

a=4.00E+09, b=3.00E+08, c=2.70E+06, d=8.00E-16

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

99.5%

99.4%

where H expressed in oersteds, and:

a=1.00E-02, b=5.54E-09, c=1.69, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

25

32

40

51

64

80

100

126

RDC(Ω)

1.4 m

2.7 m

5.7 m

11.4 m

23.2 m

46.2 m

93.6 m

186.9 m

371.5 m

738.5 m

1.5

Full Winding

Turns

12

19

29

44

69

106

165

255

394

610

944

RDC(Ω)

1.4 m

3.4 m

8.3 m

20.1 m

50.1 m

122.4 m

302.9 m

744.6 m

1.8

4.5

11.1

t106.18

T94-18

MATERIAL 18 (Permeabilität 55)

Dieses Material hat einen geringen Kernverlust wie das Material -8 mit höherer Permeabilität. Gute DC-Sättigungseigenschaften.

Für Leistungsanwendung 50/60Hz - bis 500 kHz



Preis-und Lieferzeit auf Anfrage

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T94-18

Grün/Rot

23.93

14.22

7.92

µ 55

420

±10%

DC-Drosseln-Leistungs-drossel

14

gramm

PC



AL value (nominal)

42 nH/ N²

μi (reference)



µ 55

Density gm/cm3

6.6

Test Winding

N=100, #28 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.16  V

Coating Type

Green/Red Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

5.97 cm

0.362 cm²

2.16 cm³

1.48 cm²

21 cm²

3.47 cm



Core Loss

Bpk

140 G

Frequenzy

100 kHz

Core Loss (nominal)

46 mW/cm³

Core Loss (maximum)

53 mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=8.00E+08, b=1.70E+08, c=9.00E+05, d=3.10E-14

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

100 Oe

51.4%

43.9%

where H expressed in oersteds, and:

a=1.00E-02, b=4.72E-06, c=1.65, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

25

32

40

51

64

80

100

126

RDC(Ω)

1.4 m

2.7 m

5.7 m

11.4 m

23.2 m

46.2 m

93.6 m

186.9 m

371.5 m

738.5 m

1.5

Full Winding

Turns

12

19

29

44

69

106

165

255

394

610

944

RDC(Ω)

1.4 m

3.4 m

8.3 m

20.1 m

50.1 m

122.4 m

302.9 m

744.6 m

1.8

4.5

11.1

T94-25

MATERIAL 25 (Permeabilität 25)

Ein "GS-6"-gepulvertes Eisenmaterial (Carbonyl), das gute Stabilität für kommerzielle Rundfunkfrequenzen bietet, wo hohe Güte und eine gleichmäßige Permeabilität erforderlich sind.

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T94-25

Weiß/

Rot

23.93

14.22

7.92

µ 25

200

±10%

0.1-2.0 MHz

14

gramm

RF



AL value (nominal)

20.0 nH/ N²

μi (reference)



µ 35

Density gm/cm3

6.4

Test Winding

N=100, #28 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.16  V

Coating Type

White/Red Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

5.97 cm

0.362 cm²

2.16 cm³

1.48 cm²

21 cm²

3.47 cm



Core Loss

Bpk

140 G

Frequenzy

100 kHz

Core Loss (nominal)

32 mW/cm³

Core Loss (maximum)

36 mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=1.90E+09, b=2.00E+08, c=9.00E+05, d=5.00E-15

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

74.7%

69.4%

where H expressed in oersteds, and:

a=1.00E-02, b=1.78E-06, c=1.43, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

25

32

40

51

64

80

100

126

RDC(Ω)

1.4 m

2.7 m

5.7 m

11.4 m

23.2 m

46.2 m

93.6 m

186.9 m

371.5 m

738.5 m

1.5

Full Winding

Turns

12

19

29

44

69

106

165

255

394

610

944

RDC(Ω)

1.4 m

3.4 m

8.3 m

20.1 m

50.1 m

122.4 m

302.9 m

744.6 m

1.8

4.5

11.1

T94-26

MATERIAL 26 (Permeabilität 70)

-26- & 36 Material: Ein sehr populäres Material, es ist ein kostengünstiges Allzweckmaterial, das in einer Vielzahl von Stromumwandlungs- und Netzfilteranwendungen nützlich ist.

Ein wasserstoffreduziertes Eisenmaterial, das Material '41' sehr ähnelt, aber einen erweiterten Frequenzbereich bietet.

50/60Hz - bis 500 kHz für Leistungsan

Bevorzugte Anwendungsbereiche:
Licht-Dimmer-Drosseln 50/60 Hz,

EMI-Netz Drosseln

DC-Drosseln <50 kHz

Leistungsfaktor-Korrektur Drosseln <50 kHz.

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T94-26

Gelb/

Weiß

23.93

14.22

7.92

µ 70

565

±10%

DC-Drosseln-Leistungs-drossel

15

gramm

PC



AL value (nominal)

56.5 nH/ N²

μi (reference)

µ 70

Density gm/cm3

7.0

Test Winding

N=10, #28 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.16  V

Coating Type

Yellow/White Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

5.97 cm

0.362 cm²

2.16 cm³

1.48 cm²

21 cm²

3.47 cm



Core Loss

Bpk

140 G

Frequenzy

100 kHz

Core Loss (nominal)

83 mW/cm³

Core Loss (maximum)

95mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=1.00E+09, b=1.10E+08, c=1.90E+06, d=1.90E-13

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

50 Oe

55.2%

47.4%

where H expressed in oersteds, and:

a=1.00E-02, b=9.70E-06, c=1.72, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

25

32

40

51

64

80

100

126

RDC(Ω)

1.4 m

2.7 m

5.7 m

11.4 m

23.2 m

46.2 m

93.6 m

186.9 m

371.5 m

738.5 m

1.5

Full Winding

Turns

12

19

29

44

69

106

165

255

394

610

944

RDC(Ω)

1.4 m

3.4 m

8.3 m

20.1 m

50.1 m

122.4 m

302.9 m

744.6 m

1.8

4.5

11.1



T94-36

MATERIAL 36 (Permeabilität 75)

-26- & 36 Material: Ein sehr populäres Material, es ist ein kostengünstiges Allzweckmaterial, das in einer Vielzahl von Stromumwandlungs- und Netzfilteranwendungen nützlich ist.

Ein wasserstoffreduziertes Eisenmaterial, das Material '41' sehr ähnelt, aber einen erweiterten Frequenzbereich bietet.

50/60Hz - bis 500 kHz für Leistungsan

Bevorzugte Anwendungsbereiche:
Licht-Dimmer-Drosseln 50/60 Hz,

EMI-Netz Drosseln

DC-Drosseln <50 kHz

Leistungsfaktor-Korrektur Drosseln <50 kHz.



Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T94-36

Weiß/ Gelb

23.93

14.22

7.92

µ 75

600

±10%

DC-1

MHz

15

gramm

PC



AL value (nominal)

60 nH/ N²

μi (reference)



µ 75

Density gm/cm3

7.0

Test Winding

N=10, #28 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.16  V

Coating Type

White/Yellow Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

5.97 cm

0.362 cm²

2.16 cm³

1.48 cm²

21 cm²

3.47 cm



Core Loss

Bpk

140 G

Frequenzy

100 kHz

Core Loss (nominal)

83 mW/cm³

Core Loss (maximum)

95mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=1.00E+09, b=1.10E+08, c=1.90E+06, d=1.90E-13

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

50 Oe

55.2%

47.4%

where H expressed in oersteds, and:

a=1.00E-02, b=9.70E-06, c=1.72, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

25

32

40

51

64

80

100

126

RDC(Ω)

1.4 m

2.7 m

5.7 m

11.4 m

23.2 m

46.2 m

93.6 m

186.9 m

371.5 m

738.5 m

1.5

Full Winding

Turns

12

19

29

44

69

106

165

255

394

610

944

RDC(Ω)

1.4 m

3.4 m

8.3 m

20.1 m

50.1 m

122.4 m

302.9 m

744.6 m

1.8

4.5

11.1

T94-45 Neu im Programm

      Neu im Programm

-45 Material: Das Eisenpulvermaterial mit der höchsten Permeabilität. Betrachten Sie es als eine hohe Durchlässigkeit Alternative zum -52 Material mit etwas höheren Kernverlusten.

‐45 Material: The highest permeability iron powder material available. Consider as a high perm alternate to the ‐52 Material with slightly higher core losses.





Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T94-45



Schwarz/Schwarz

23.93

14.22

7.92

µ 100

760

±10%

DC-Drosseln-Leistungs-drossel

16

gramm

PC



AL value (nominal)

76 nH/ N²

μi (reference)

µ 100

Density gm/cm3

7.2

          Test Winding

N=10, #28 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.16  V

Coating Type

Black/Black Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

5.97 cm

0.362 cm²

2.16 cm³

1.48 cm²

21 cm²

3.47 cm



Core Loss

Bpk

140 G

Frequenzy

100 kHz

Core Loss (nominal)

61 mW/cm³

Core Loss (maximum)

 71 mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=1.20E+09, b=1.30E+08, c=2.40E+06, d=1.20E-13

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

50 Oe

43.3%

36.3%

where H expressed in oersteds, and:

a=1.00E-02, b=2.44E-05, c=1.61, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

25

32

40

51

64

80

100

126

RDC(Ω)

1.4 m

2.7 m

5.7 m

11.4 m

23.2 m

46.2 m

93.6 m

186.9 m

371.5 m

738.5 m

1.5

Full Winding

Turns

12

19

29

44

69

106

165

255

394

610

944

RDC(Ω)

1.4 m

3.4 m

8.3 m

20.1 m

50.1 m

122.4 m

302.9 m

744.6 m

1.8

4.5

11.1





Core Loss

Bpk

140 G

Frequenzy

100 kHz

Core Loss (nominal)

  61 mW/cm³

Core Loss (maximum)

71 mW/cm³

Core Loss(mW/cm³

a=1.20E+09, b=1.30E+08, c=2.40E+06, d=1.20E-13



DC Saturation

HDC

50 Oe

Percent Initial Perm (nom.)

43.3%

Percent Initial Perm (min.)

36.3%



where H expressed in oersteds, and:

a=1.00E-02, b=2.44E-05, c=1.61, d=0.00

mat52

T94-52



-52 Material: Dieses Material hat geringere Kernverluste bei hoher Frequenz und die gleiche Durchlässigkeit wie das -26 und -36  Material. Es ist beliebt für Hochfrequenz-Choke-Designs und in einer Vielzahl von Geometrien verfügbar.

‐52 Material: This material has lower core losses at high frequency and the same permeability as the ‐26 and -36 Material. It is popular for high frequency choke designs and available in a wide variety of geometries.

Material 52 (Permeabilität 75)

50/60 Hz- Differental mode EMI Line-Chokes

z.B.350 µ H -100 Umdrehungen=35,0nH/N²

IRON POWDER TOROIDAL CORES FOR POWER AND AC LINE FILTER

Preis auf Anfrage

Lieferzeit : Auf Anfrage





Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T94-52

Grün/ Blau

23.93

14.22

7.92

µ 75

570

±10%

">"50 kHz

15

gramm

PC



AL value (nominal)

57 nH/ N²

μi (reference)

µ 75

Density gm/cm3

7.0

          Test Winding

N=10, #28 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.16  V

Coating Type

Green/Blue Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

5.97 cm

0.362 cm²

2.16 cm³

1.48 cm²

21 cm²

3.47 cm



Core Loss

Bpk

140 G

Frequenzy

100 kHz

Core Loss (nominal)

58 mW/cm³

Core Loss (maximum)

67 mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=1.00E+09, b=1.10E+08, c=2.10E+06, d=6.90E-14

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

50 Oe

61.6%

53.4%

where H expressed in oersteds, and:

a=1.00E-02, b=4.66E-06, c=1.84, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

25

32

40

51

64

80

100

126

RDC(Ω)

1.4 m

2.7 m

5.7 m

11.4 m

23.2 m

46.2 m

93.6 m

186.9 m

371.5 m

738.5 m

1.5

Full Winding

Turns

12

19

29

44

69

106

165

255

394

610

944

RDC(Ω)

1.4 m

3.4 m

8.3 m

20.1 m

50.1 m

122.4 m

302.9 m

744.6 m

1.8

4.5

11.1

T106-0



MATERIAL 0 (Permeabilität 1)

Dieses Material wird am häufigsten für Frequenzen oberhalb 200 MHz benutzt.



Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T106-0

Braun

26.92

14.48

11.10

µ 1

19

±10%

50-300 Mhz

9.4

gramm

RF



AL value (nominal)

1.9 nH/ N²



μi (reference)

µ 1



Density gm/cm3

N/A



Test Winding

N=100, #28 AWG



Frequency

10 kHz



Voltage on Agilent 4284A

0.12  V



Coating Type

Tan/Tan Epoxy Paint



Voltage Breakdown (min.)

500 Vrms, 60Hz



Limit

0.1 mA, 5 s



Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn



6.49 cm

0.659 cm²

4.28 cm³

1.53 cm²

28.1 cm²

4.39 cm





Core Loss

Bpk

140 G



Frequenzy

100 kHz



Core Loss (nominal)

0 mW/cm³



Core Loss (maximum)

0 mW/cm³



where Bpk expressed in gauss, f expressed in hertz, and:

a=1.00E+99, b=1.00E+99, c=1.00E+99, d=0.00E+00



DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

100.0%

100.0%



where H expressed in oersteds, and:

a=1.00E-02, b=0.00E+00, c=0.00, d=0.00



Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250



Single Layer

Turns

12

15

20

26

32

41

52

65

82

102

128



RDC(Ω)

1.7 m

3.4 m

7.3 m

15.0 m

29.4 m

59.9 m

120.8 m

240.2 m

482.0 m

953.5 m

1.9



Full Winding

Turns

12

19

30

46

71

110

171

264

409

633

980



RDC(Ω)

1.7 m

4.3 m

10.9 m

26.6 m

65.2 m

160.7 m

397.4 m

975.7 m

2.4

5.9

14.6



T106-1

MATERIAL 1  (Permeabilität 20)

Ein "C"-gepulvertes Carbonyleisenmaterial, das dem Material '13' sehr ähnelt, aber einen höheren Volumenwiderstand und eine größere Stabilität aufweist.

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T106-1

Blau

26.92

14.48

11.10

µ 20

280

±10%

0.05-5 Mhz

27

gramm

RF



AL value (nominal)

28.0 nH/ N²

μi (reference)

µ 20

Density gm/cm3

6.4

Test Winding

N=100, #28 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.29  V

Coating Type

Blue/Clear Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

6.49 cm

0.659 cm²

4.28 cm³

1.53 cm²

28.1 cm²

4.39 cm



Core Loss

Bpk

140 G

Frequenzy

100 kHz

Core Loss (nominal)

31 mW/cm³

Core Loss (maximum)

36 mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=1.90E+09, b=2.00E+08, c=9.00E+05, d=4.30E-15

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

82.2%

78.0%

where H expressed in oersteds, and:

a=1.00E-02, b=1.14E-06, c=1.43, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30



mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

26

32

41

52

65

82

102

128

RDC(Ω)

1.7 m

3.4 m

7.3 m

15.0 m

29.4 m

59.9 m

120.8 m

240.2 m

482.0 m

953.5 m

1.9

Full Winding

Turns

12

19

30

46

71

110

171

264

409

633

980

RDC(Ω)

1.7 m

4.3 m

10.9 m

26.6 m

65.2 m

160.7 m

397.4 m

975.7 m

2.4

5.9

14.6

t106-2

T106-2

MATERIAL 2 (Permeabilität 10)

Ein "E"-gepulvertes Carbonyleisenmaterial mit großem Volumenwiderstand und hoher Güte im Bereich von 1 MHz bei 30 MHz. Wird von allen Eisenpulvermaterialien am meisten verwendet.

-2 & -14 Materialien: Die geringe Permeabilität dieser Materialien führt zu einer niedrigeren AC-Flussdichte als andere Materialien ohne zusätzlichen Lückenverlust. Das -14 Material ist ähnlich -2 Material mit einer höheren Permeabilität.

-2, -4, -6 & -7 Materialien: Dies sind die beliebtesten Carbonyleisenmischungen. Sie bieten hohe Q-Werte bis zu 40 MHz und sind am beliebtesten für Amateurfunk und eine Vielzahl anderer Kommunikationsanwendungen. Sie sind auch nützlich für moderate Bandtransformatoren im Frequenzbereich von 200 bis 400 MHz

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T106-2

Rot

26.92

14.48

11.10

µ 10

135

±5%

1-30 Mhz

27

gramm

RF

PC



AL value (nominal)

13.5 nH/ N²

μi (reference)

µ 10

Density gm/cm3

5

Test Winding

N=100, #26 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.29  V

Coating Type

Red/Clear Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

6.49 cm

0.659 cm²

4.28 cm³

1.53 cm²

28.1 cm²

4.39 cm



Core Loss & Q

Q Test Winding

N=60, # 24 AWG

Q Frequenzy

1.1 MHz

Q min on HP4342A

266

where Bpk expressed in gauss, f expressed in hertz, and:

a=4.00E+09, b=3.00E+08, c=2.70E+06, d=9.60E-16

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

95.9%

94.8%

where H expressed in oersteds, and:

a=1.00E-02, b=1.83E-07, c=1.46, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

26

32

41

52

65

82

102

128

RDC(Ω)

1.7 m

3.4 m

7.3 m

15.0 m

29.4 m

59.9 m

120.8 m

240.2 m

482.0 m

953.5 m

1.9

Full Winding

Turns

12

19

30

46

71

110

171

264

409

633

980

RDC(Ω)

1.7 m

4.3 m

10.9 m

26.6 m

65.2 m

160.7 m

397.4 m

975.7 m

2.4

5.9

14.6



T106-3

MATERIAL 3 (Permeabilität 35)

Ein "HP"-gepulvertes Carbonyleisenmaterial mit ausgezeichneter Stabilität und hoher Güte für niedrige Frequenzen um 50 kHz.

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T106-3

Grau

26.92

14.48

11.10

µ 35

450

±10%

0.05-5 Mhz

28

gramm

RF



AL value (nominal)

45 nH/ N²

μi (reference)

µ 35

Density gm/cm3

6.5

Test Winding

N=100, #28 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.29  V

Coating Type

Gray/Clear Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

6.49 cm

0.659 cm²

4.28 cm³

1.53 cm²

28.1 cm²

4.39 cm



Core Loss

Bpk

140 G

Frequenzy

100 kHz

Core Loss (nominal)

31 mW/cm³

Core Loss (maximum)

36 mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=1.90E+09, b=2.00E+08, c=9.00E+05, d=4.30E-15

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

100.0%

100.0%

where H expressed in oersteds, and:

a=1.00E-02, b=3.49E-06, c=1.43, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

26

32

41

52

65

82

102

128

RDC(Ω)

1.7 m

3.4 m

7.3 m

15.0 m

29.4 m

59.9 m

120.8 m

240.2 m

482.0 m

953.5 m

1.9

Full Winding

Turns

12

19

30

46

71

110

171

264

409

633

980

RDC(Ω)

1.7 m

4.3 m

10.9 m

26.6 m

65.2 m

160.7 m

397.4 m

975.7 m

2.4

5.9

14.6

T106-6

MATERIAL 6 (Permeabilität 8)

Ein "SF"-gepulvertes Eisenmaterial, das dem Material "2" sehr ähnelt, aber verbesserte Güte für höhere Frequenzen bis 50 MHz aufweist.

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T106-6

Gelb

26.92

14.48

11.10

µ 8

116

±5%

2-50 Mhz

21

gramm

RF



AL value (nominal)

11.6 nH/ N²

μi (reference)

µ 8

Density gm/cm3

5

         Test Winding

N=100, #26 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.29  V

Coating Type

Yellow/Clear Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

6.49 cm

0.659 cm²

4.28 cm³

1.53 cm²

28.1 cm²

4.39 cm



Core Loss & Q

Q Test Winding

N=30, # 20 AWG

Q Frequenzy

2.5 MHz

Q min on HP4342A

308

where Bpk expressed in gauss, f expressed in hertz, and:

a=4.00E+09, b=3.00E+08, c=2.70E+06, d=8.90E-16

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

98.1%

97.4%

where H expressed in oersteds, and:

a=1.00E-02, b=4.87E-08, c=1.57, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

26

32

41

52

65

82

102

128

RDC(Ω)

1.7 m

3.4 m

7.3 m

15.0 m

29.4 m

59.9 m

120.8 m

240.2 m

482.0 m

953.5 m

1.9

Full Winding

Turns

12

19

30

46

71

110

171

264

409

633

980

RDC(Ω)

1.7 m

4.3 m

10.9 m

26.6 m

65.2 m

160.7 m

397.4 m

975.7 m

2.4

5.9

14.6

T106-11

MATERIAL 11 (Permeabilität 20)

Ein "C"-gepulvertes Carbonyleisenmaterial, das dem Material '13' sehr ähnelt, aber einen höheren Volumenwiderstand und eine größere Stabilität aufweist.

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T106-11

Blau

26.92

14.48

11.10

µ 20

325

±10%

0.05-5 Mhz

27

gramm

RF



AL value (nominal)

32,5 nH/ N²

μi (reference)

µ 20

Density gm/cm3

6.4

Test Winding

N=100, #28 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.29  V

Coating Type

Blue/Clear Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

6.49 cm

0.659 cm²

4.28 cm³

1.53 cm²

28.1 cm²

4.39 cm



Core Loss

Bpk

140 G

Frequenzy

100 kHz

Core Loss (nominal)

31 mW/cm³

Core Loss (maximum)

36 mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=1.90E+09, b=2.00E+08, c=9.00E+05, d=4.30E-15

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

82.2%

78.0%

where H expressed in oersteds, and:

a=1.00E-02, b=1.14E-06, c=1.43, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

26

32

41

52

65

82

102

128

RDC(Ω)

1.7 m

3.4 m

7.3 m

15.0 m

29.4 m

59.9 m

120.8 m

240.2 m

482.0 m

953.5 m

1.9

Full Winding

Turns

12

19

30

46

71

110

171

264

409

633

980

RDC(Ω)

1.7 m

4.3 m

10.9 m

26.6 m

65.2 m

160.7 m

397.4 m

975.7 m

2.4

5.9

14.6

T106-13

MATERIAL 13 (Permeabilität 35)

Ein "HP"-gepulvertes Carbonyleisenmaterial mit ausgezeichneter Stabilität und hoher Güte für niedrige Frequenzen um 50 kHz.

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T106-13

Grau

26.92

14.48

11.10

µ 35

450

±10%

0.05-5 Mhz

28

gramm

RF

AL value (nominal)

45 nH/ N²

μi (reference)

µ 35

Density gm/cm3

6.5

Test Winding

N=100, #28 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.29  V

Coating Type

Gray/Clear Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

6.49 cm

0.659 cm²

4.28 cm³

1.53 cm²

28.1 cm²

4.39 cm



Core Loss

Bpk

140 G

Frequenzy

100 kHz

Core Loss (nominal)

31 mW/cm³

Core Loss (maximum)

36 mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=1.90E+09, b=2.00E+08, c=9.00E+05, d=4.30E-15

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

100.0%

100.0%

where H expressed in oersteds, and:

a=1.00E-02, b=3.49E-06, c=1.43, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

26

32

41

52

65

82

102

128

RDC(Ω)

1.7 m

3.4 m

7.3 m

15.0 m

29.4 m

59.9 m

120.8 m

240.2 m

482.0 m

953.5 m

1.9

Full Winding

Turns

12

19

30

46

71

110

171

264

409

633

980

RDC(Ω)

1.7 m

4.3 m

10.9 m

26.6 m

65.2 m

160.7 m

397.4 m

975.7 m

2.4

5.9

14.6
