T106-15

MATERIAL 15 (Permeabilität 25)

Ein "GS-6"-gepulvertes Eisenmaterial (Carbonyl), das gute Stabilität für kommerzielle Rundfunkfrequenzen bietet, wo hohe Güte und eine gleichmäßige Permeabilität erforderlich sind.

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T106-15

Rot/

Weiß

26.92

14.48

11.10

µ 25

345

±10%

0.1-2 Mhz

27

gramm

RF



AL value (nominal)

34.5 nH/ N²

μi (reference)

µ 25

Density gm/cm3

6.4

          Test Winding

N=100, #28 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.29  V

Coating Type

Red/White Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

6.49 cm

0.659 cm²

4.28 cm³

1.53 cm²

28.1 cm²

4.39 cm



Core Loss

Bpk

140 G

Frequenzy

100 kHz

Core Loss (nominal)

32 mW/cm³

Core Loss (maximum)

36 mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=1.90E+09, b=2.00E+08, c=9.00E+05, d=5.00E-15

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

74.7%

69.4%

where H expressed in oersteds, and:

a=1.00E-02, b=1.78E-06, c=1.43, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

26

32

41

52

65

82

102

128

RDC(Ω)

1.7 m

3.4 m

7.3 m

15.0 m

29.4 m

59.9 m

120.8 m

240.2 m

482.0 m

953.5 m

1.9

Full Winding

Turns

12

19

30

46

71

110

171

264

409

633

980

RDC(Ω)

1.7 m

4.3 m

10.9 m

26.6 m

65.2 m

160.7 m

397.4 m

975.7 m

2.4

5.9

14.6

t106-18b

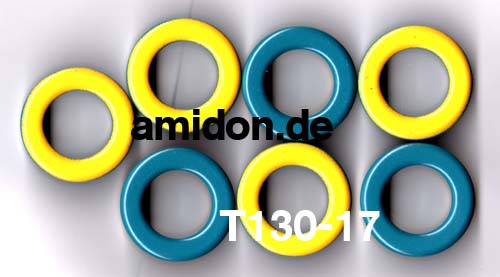

T106-17

Material 17 (Permeabilität 4)

Ein synthetisches Oxidmaterial, das eine mittlere Güte und Stabilität oberhalb von 100 MHz besitzt..

Material 17 Ähnelt sehr dem Material 12, hat aber einen stark verringerten Temperaturgang. Die Güte, die bei Benutzung dieses Materials erreicht werden kann, liegt um etwa 10% unter der von Material "12". Dies sollte aber hingenommen werden, wenn geringere Temperaturgang von vorrangiger Bedeutung ist.

10 & -17 Materialien: Diese Materialien sind Carbonyl Irons mit der höchsten Frequenz. Sie bieten hohe Q-Werte bis zu 150 MHz und sind ein beliebtes Material für Kabelfernsehanwendungen. Sie werden moderate Bandtransformatoren produzieren, die 400 bis 700 MHz abdecken.





Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T106-17

Blau/

Gelb

26.92

14.48

11.10

µ 4

51

±5%

20-200 MHz

21

gramm

RF



AL value (nominal)

5.1 nH/ N²

μi (reference)

µ 4

Density gm/cm3

4.8

Test Winding

N=100, #26 AWG

Frequency

1 MHz

Voltage on Agilent 4284A

1.0 V

Coating Type

Blue/Yellow Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

6.49 cm

0.659 cm²

4.28 cm³

1.53 cm²

28.1 cm²

4.39 cm



Core Loss & Q

Q Test Winding

N=5, # 20 AWG

Q Frequenzy

50.0 MHz

Q min on HP4342A

166

where Bpk expressed in gauss, f expressed in hertz, and:

a=4.00E+09, b=3.00E+08, c=2.70E+06, d=4.40E-16

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

99.5%

99.4%

where H expressed in oersteds, and:

a=1.00E-02, b=4.87E-08, c=1.57, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

26

32

41

52

65

82

102

128

RDC(Ω)

1.7 m

3.4 m

7.3 m

15.0 m

29.4 m

59.9 m

120.8 m

240.2 m

482.0 m

953.5 m

1.9

Full Winding

Turns

12

19

30

46

71

110

171

264

409

633

980

RDC(Ω)

1.7 m

4.3 m

10.9 m

26.6 m

65.2 m

160.7 m

397.4 m

975.7 m

2.4

5.9

14.6

t15

T106-18

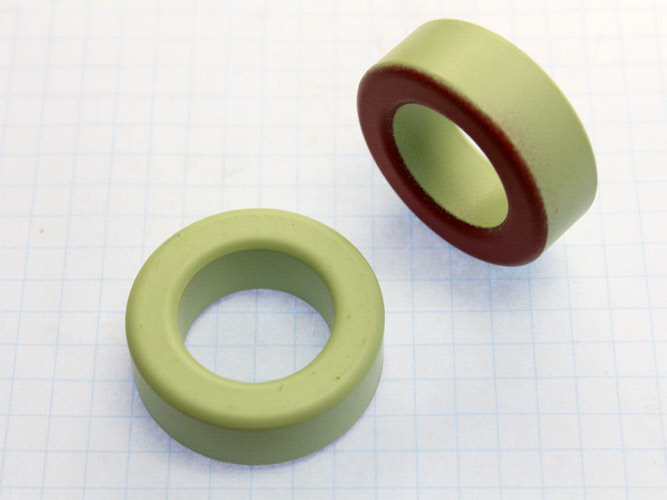

MATERIAL 18 (Permeabilität 55)

Dieses Material hat einen geringen Kernverlust wie das Material -8 mit höherer Permeabilität. Gute DC-Sättigungseigenschaften.

Für Leistungsanwendung 50/60Hz - bis 500 kHz

MATERIAL 18 (Permeabilität 55)

Material mit geringem Ringkernverlust und Sättigungs-Charakteristik. Für Leistungsanwendung 50/60Hz - bis 500 kHz

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T106-18

Grün/

Rot

26.92

14.48

11.10

µ 55

700

±10%

DC-Drossel-Leisungs-drossel

28

gramm

PC



AL value (nominal)

70 nH/ N²

μi (reference)

µ 55

Density gm/cm3

6.6

Test Winding

N=100, #28 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.29  V

Coating Type

Green/Red Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

6.49 cm

0.659 cm²

4.28 cm³

1.53 cm²

28.1 cm²

4.39 cm



Core Loss

Bpk

140 G

Frequenzy

100 kHz

Core Loss (nominal)

46 mW/cm³

Core Loss (maximum)

53 mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=8.00E+08, b=1.70E+08, c=9.00E+05, d=3.10E-14

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

100 Oe

51.4%

43.9%

where H expressed in oersteds, and:

a=1.00E-02, b=4.72E-06, c=1.65, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

26

32

41

52

65

82

102

128

RDC(Ω)

1.7 m

3.4 m

7.3 m

15.0 m

29.4 m

59.9 m

120.8 m

240.2 m

482.0 m

953.5 m

1.9

Full Winding

Turns

12

19

30

46

71

110

171

264

409

633

980

RDC(Ω)

1.7 m

4.3 m

10.9 m

26.6 m

65.2 m

160.7 m

397.4 m

975.7 m

2.4

5.9

14.6

T106-25

MATERIAL 25 (Permeabilität 25)

Ein "GS-6"-gepulvertes Eisenmaterial (Carbonyl), das gute Stabilität für kommerzielle Rundfunkfrequenzen bietet, wo hohe Güte und eine gleichmäßige Permeabilität erforderlich sind.

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T106-25

Weiß/

Rot

26.92

14.48

11.10

µ 25

345

±10%

0.1-2 Mhz

27

gramm

RF



AL value (nominal)

34.5 nH/ N²

μi (reference)

µ 25

Density gm/cm3

6.4

Test Winding

N=100, #28 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.29  V

Coating Type

Red/White Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

6.49 cm

0.659 cm²

4.28 cm³

1.53 cm²

28.1 cm²

4.39 cm



Core Loss

Bpk

140 G

Frequenzy

100 kHz

Core Loss (nominal)

32 mW/cm³

Core Loss (maximum)

36 mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=1.90E+09, b=2.00E+08, c=9.00E+05, d=5.00E-15

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

74.7%

69.4%

where H expressed in oersteds, and:

a=1.00E-02, b=1.78E-06, c=1.43, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

26

32

41

52

65

82

102

128

RDC(Ω)

1.7 m

3.4 m

7.3 m

15.0 m

29.4 m

59.9 m

120.8 m

240.2 m

482.0 m

953.5 m

1.9

Full Winding

Turns

12

19

30

46

71

110

171

264

409

633

980

RDC(Ω)

1.7 m

4.3 m

10.9 m

26.6 m

65.2 m

160.7 m

397.4 m

975.7 m

2.4

5.9

14.6

T106-26

MATERIAL 26 (Permeabilität 70)

-26- & 36 Material: Ein sehr populäres Material, es ist ein kostengünstiges Allzweckmaterial, das in einer Vielzahl von Stromumwandlungs- und Netzfilteranwendungen nützlich ist.

Ein wasserstoffreduziertes Eisenmaterial, das Material '41' sehr ähnelt, aber einen erweiterten Frequenzbereich bietet.

50/60Hz - bis 500 kHz für Leistungsan

Bevorzugte Anwendungsbereiche:
Licht-Dimmer-Drosseln 50/60 Hz,

EMI-Netz Drosseln

DC-Drosseln <50 kHz

Leistungsfaktor-Korrektur Drosseln <50 kHz.

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T106-26

Gelb/

Weiß

26.92

14.48

11.10

µ 70

930

±10%

DC-1 MHz

30

gramm

PC





AL value (nominal)

93 nH/ N²

μi (reference)

µ 70

Density gm/cm3

7.0

Test Winding

N=100, #28 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.29  V

Coating Type

Yellow/White Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

6.49 cm

0.659 cm²

4.28 cm³

1.53 cm²

28.1 cm²

4.39 cm



Core Loss

Bpk

140 G

Frequenzy

100 kHz

Core Loss (nominal)

83 mW/cm³

Core Loss (maximum)

95 mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=1.00E+09, b=1.10E+08, c=1.90E+06, d=1.90E-13

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

50 Oe

55.2%

47.4%

where H expressed in oersteds, and:

a=1.00E-02, b=9.70E-06, c=1.72, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

26

32

41

52

65

82

102

128

RDC(Ω)

1.7 m

3.4 m

7.3 m

15.0 m

29.4 m

59.9 m

120.8 m

240.2 m

482.0 m

953.5 m

1.9

Full Winding

Turns

12

19

30

46

71

110

171

264

409

633

980

RDC(Ω)

1.7 m

4.3 m

10.9 m

26.6 m

65.2 m

160.7 m

397.4 m

975.7 m

2.4

5.9

14.6

T106-36

MATERIAL 36 (Permeabilität 75)

-26- & 36 Material: Ein sehr populäres Material, es ist ein kostengünstiges Allzweckmaterial, das in einer Vielzahl von Stromumwandlungs- und Netzfilteranwendungen nützlich ist.

Ein wasserstoffreduziertes Eisenmaterial, das Material '41' sehr ähnelt, aber einen erweiterten Frequenzbereich bietet.

50/60Hz - bis 500 kHz für Leistungsan

Bevorzugte Anwendungsbereiche:
Licht-Dimmer-Drosseln 50/60 Hz,

EMI-Netz Drosseln

DC-Drosseln <50 kHz

Leistungsfaktor-Korrektur Drosseln <50 kHz.

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T106-36

Gelb/

Weiß

26.92

14.48

11.10

µ 75

930

±10%

DC-1 MHz

30

gramm

PC



AL value (nominal)

93 nH/ N²

μi (reference)

µ 70

Density gm/cm3

7.0

Test Winding

N=100, #28 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.29  V

Coating Type

Yellow/White Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

6.49 cm

0.659 cm²

4.28 cm³

1.53 cm²

28.1 cm²

4.39 cm



Core Loss

Bpk

140 G

Frequenzy

100 kHz

Core Loss (nominal)

83 mW/cm³

Core Loss (maximum)

95 mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=1.00E+09, b=1.10E+08, c=1.90E+06, d=1.90E-13

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

50 Oe

55.2%

47.4%

where H expressed in oersteds, and:

a=1.00E-02, b=9.70E-06, c=1.72, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

26

32

41

52

65

82

102

128

RDC(Ω)

1.7 m

3.4 m

7.3 m

15.0 m

29.4 m

59.9 m

120.8 m

240.2 m

482.0 m

953.5 m

1.9

Full Winding

Turns

12

19

30

46

71

110

171

264

409

633

980

RDC(Ω)

1.7 m

4.3 m

10.9 m

26.6 m

65.2 m

160.7 m

397.4 m

975.7 m

2.4

5.9

14.6

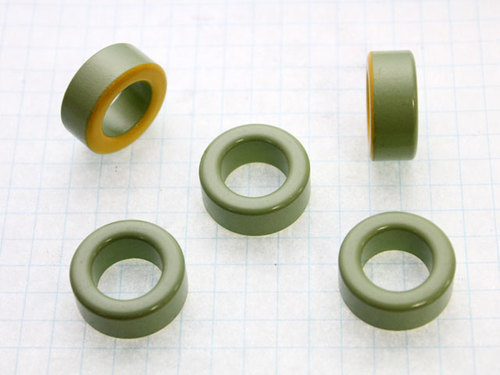

T106-40 Neu im Programm

Neu im Programm

-40 Material: Das billigste Eisenpulver Material, Eigenschaften ähnlich wie das -26 und 36 Material mit einer geringeren Durchlässigkeit. Am beliebtesten sind große Größen.

‐40 Material: The least expensive iron powder material, characteristics similar to the ‐26 and 36 Material with a lower permeability. Most popular is large sizes.

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T106-40

Grün/

Gelb

26.92

14.48

11.10

µ 60

810

±10%

DC-1 MHz

30

gramm

PC





AL value (nominal)

81 nH/ N²

μi (reference)

µ 60

Density gm/cm3

7.0

Test Winding

N=100, #28 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.29  V

Coating Type

Green/Yellow Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

6.49 cm

0.659 cm²

4.28 cm³

1.53 cm²

28.1 cm²

4.39 cm



Core Loss

Bpk

140 G

Frequenzy

100 kHz

Core Loss (nominal)

127 mW/cm³

Core Loss (maximum)

146 mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=1.10E+09, b=3.30E+07, c=2.50E+06, d=3.10E-13

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

50 Oe

67.0%

60.2%

wh a=1.00E-02, b=8.93E-06, c=1.61, d=0.00ere H expressed in oersteds, and:

a=1.00E-02, b=4.66E-06, c=1.84, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

26

32

41

52

65

82

102

128

RDC(Ω)

1.7 m

3.4 m

7.3 m

15.0 m

29.4 m

59.9 m

120.8 m

240.2 m

482.0 m

953.5 m

1.9

Full Winding

Turns

12

19

30

46

71

110

171

264

409

633

980

RDC(Ω)

1.7 m

4.3 m

10.9 m

26.6 m

65.2 m

160.7 m

397.4 m

975.7 m

2.4

5.9

14.6

mat52

T106-52

-52 Material: Dieses Material hat geringere Kernverluste bei hoher Frequenz und die gleiche Durchlässigkeit wie das -26 und -36  Material. Es ist beliebt für Hochfrequenz-Choke-Designs und in einer Vielzahl von Geometrien verfügbar.

‐52 Material: This material has lower core losses at high frequency and the same permeability as the ‐26 and -36 Material. It is popular for high frequency choke designs and available in a wide variety of geometries.

Material 52 (Permeabilität 75)

50/60 Hz- Differential mode EMI Line-Chokes

z.B.350 µ H -100 Umdrehungen=35,0nH/N²

IRON POWDER TOROIDAL CORES FOR POWER AND AC LINE FILTER



Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T106-52

Grün/

Blau

26.92

14.48

11.10

µ 75

950

±10%

DC-1 MHz

30

gramm

PC





AL value (nominal)

95 nH/ N²

μi (reference)

µ 75

Density gm/cm3

7.0

Test Winding

N=100, #28 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.29  V

Coating Type

Green/Blue Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

6.49 cm

0.659 cm²

4.28 cm³

1.53 cm²

28.1 cm²

4.39 cm



Core Loss

Bpk

140 G

Frequenzy

100 kHz

Core Loss (nominal)

58 mW/cm³

Core Loss (maximum)

67 mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=1.00E+09, b=1.10E+08, c=2.10E+06, d=6.90E-14

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

50 Oe

61.6%

53.4%

where H expressed in oersteds, and:

a=1.00E-02, b=4.66E-06, c=1.84, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

26

32

41

52

65

82

102

128

RDC(Ω)

1.7 m

3.4 m

7.3 m

15.0 m

29.4 m

59.9 m

120.8 m

240.2 m

482.0 m

953.5 m

1.9

Full Winding

Turns

12

19

30

46

71

110

171

264

409

633

980

RDC(Ω)

1.7 m

4.3 m

10.9 m

26.6 m

65.2 m

160.7 m

397.4 m

975.7 m

2.4

5.9

14.6

t106.18

T106A-18

MATERIAL 18 (Permeabilität 55)

Material mit geringem Ringkernverlust und Sättigungs-Charakteristik. Für Leistungsanwendung 50/60Hz - bis 500 kHz

Lieferzeit auf Anfrage



Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T106A-18

Grün/

Rot

26.92

14.48

14.61

µ 55

910

±10%

DC-Drossel-Leisungs-drossel

37

gramm

PC



AL value (nominal)

91 nH/ N²

μi (reference)



µ 55

Density gm/cm3

6.6

Test Winding

N=100, #28 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.38  V

Coating Type

Green/Red Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

6.49 cm

0.659 cm²

4.28 cm³

1.53 cm²

28.1 cm²

4.39 cm



Core Loss

Bpk

140 G

Frequenzy

100 kHz

Core Loss (nominal)

46 mW/cm³

Core Loss (maximum)

53 mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=8.00E+08, b=1.70E+08, c=9.00E+05, d=3.10E-14

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

100 Oe

51.4%

43.9%

where H expressed in oersteds, and:

a=1.00E-02, b=4.72E-06, c=1.65, d=0.00

Wire Size

AWG

10

12

14

16

18

20

22

24

26

28

30

mm

2.500

2.000

1.600

1.250

1.000

0.800

0.630

0.500

0.400

0.315

0.250

Single Layer

Turns

12

15

20

26

32

41

52

65

82

102

128

RDC(Ω)

2.0 m

4.0 m

8.4 m

17.4 m

34.1 m

69.5 m

140.1 m

240.2 m

558.9 m

1.1 m

2.2

Full Winding

Turns

12

19

30

46

71

110

171

264

409

633

980

RDC(Ω)

2.0 m

5.0 m

12.6 m

30.8 m

75.6 m

186.4 m

460.8 m

975.7 m

2.8

6.9

16.9

T130-0

MATERIAL 0 (Permeabilität 1)

Dieses Material wird am häufigsten für Frequenzen oberhalb 200 MHz benutzt.

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität

AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T130-0

Braun

33.02

19.81

11.10

µ 1

15

Ref Only

15-300 MHz

13 gramm

RD

AL value (nominal)

1.5 nH/ N²

μi (reference)

µ 1

Density gm/cm3

7.0

Test Winding

N=100, #28 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.094  V

Coating Type

Tan/Tan Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

8.28 cm

0.698 cm²

5.78 cm³

2.93 cm²

39.8 cm²

4.73 cm



Core Loss

Bpk

140 G

Frequenzy

100 kHz

Core Loss (nominal)

0 mW/cm³

Core Loss (maximum)

0 mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=1.00E+99, b=1.00E+99, c=1.00E+99, d=0.00E+00

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

100.0%

100.0%

where H expressed in oersteds, and:

a=1.00E-02, b=0.00E+00, c=0.00, d=0.00



Wire Size

AWG

8

10

12

14

16

18

20

22

24

26

28

mm

3.150

2.500

2000

1.600

1.250

1000

0.800

0.630

0.500

0.400

0.315

Single Layer

Turns

14

18

22

29

36

46

58

73

91

114

142

RDC(Ω)

1.4 m

2.8 m

5.4 m

11.4 m

22.4 m

45.6 m

91.4 m

182.9 m

362.6 m

722.4 m

1.4

Full Winding

Turns

15

24

37

57

88

136

211

326

504

781

1.208

RDC(Ω)

1.5 m

3.7 m

9.1 m

22.3 m

54.8 m

134.7 m

332.4 m

816.7 m

2.0

4.9

12.2

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität

AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T130-0

Braun

33.02

19.81

11.10

µ 1

15

Ref Only

15-300 MHz

13 gramm

RD

AL value (nominal)

1.5 nH/ N²

μi (reference)

µ 1

Density gm/cm3

7.0

Test Winding

N=100, #28 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.094  V

Coating Type

Tan/Tan Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

8.28 cm

0.698 cm²

5.78 cm³

2.93 cm²

39.8 cm²

4.73 cm



Core Loss

Bpk

140 G

Frequenzy

100 kHz

Core Loss (nominal)

0 mW/cm³

Core Loss (maximum)

0 mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=1.00E+99, b=1.00E+99, c=1.00E+99, d=0.00E+00

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

100.0%

100.0%

where H expressed in oersteds, and:

a=1.00E-02, b=0.00E+00, c=0.00, d=0.00



Wire Size

AWG

8

10

12

14

16

18

20

22

24

26

28

mm

3.150

2.500

2000

1.600

1.250

1000

0.800

0.630

0.500

0.400

0.315

Single Layer

Turns

14

18

22

29

36

46

58

73

91

114

142

RDC(Ω)

1.4 m

2.8 m

5.4 m

11.4 m

22.4 m

45.6 m

91.4 m

182.9 m

362.6 m

722.4 m

1.4

Full Winding

Turns

15

24

37

57

88

136

211

326

504

781

1.208

RDC(Ω)

1.5 m

3.7 m

9.1 m

22.3 m

54.8 m

134.7 m

332.4 m

816.7 m

2.0

4.9

12.2

T130-1

MATERIAL 1 (Permeabilität 20)

Ein "C"-gepulvertes Carbonyleisenmaterial, das dem Material '13' sehr ähnelt, aber einen höheren Volumenwiderstand und eine größere Stabilität aufweist.

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität

AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T130-1

Blau

33.02

19.08

11.10

µ 20

200

±10%

0.05-5 MHz

37 gramm

RF

AL value (nominal)

20 nH/ N²

μi (reference)

µ 20

Density gm/cm3

6.4

          Test Winding

N=100, #24 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.31  V

Coating Type

Blue/Clear Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

8.28 cm

0.698 cm²

5.78 cm³

2.93 cm²

39.8 cm²

4.73 cm



Core Loss

Bpk

140 G

Frequenzy

100 kHz

Core Loss (nominal)

31 mW/cm³

Core Loss (maximum)

36 mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=1.90E+09, b=2.00E+08, c=9.00E+05, d=4.30E-15

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

82.2%

78.0%

where H expressed in oersteds, and:

a=1.00E-02, b=1.14E-06, c=1.43, d=0.00



Wire Size

AWG

8

10

12

14

16

18

20

22

24

26

28



mm

3.150

2.500

2000

1.600

1.250

1000

0.800

0.630

0.500

0.400

0.315



Single Layer

Turns

14

18

22

29

36

46

58

73

91

114

142



RDC(Ω)

1.4 m

2.8 m

5.4 m

11.4 m

22.4 m

45.6 m

91.4 m

182.9 m

362.6 m

722.4 m

1.4



Full Winding

Turns

15

24

37

57

88

136

211

326

504

781

1.208



RDC(Ω)

1.5 m

3.7 m

9.1 m

22.3 m

54.8 m

134.7 m

332.4 m

816.7 m

2.0

4.9

12.2



T130-2*

MATERIAL 2 (Permeabilität 10)

Ein "E"-gepulvertes Carbonyleisenmaterial mit großem Volumenwiderstand und hoher Güte im Bereich von 1 MHz bei 30 MHz. Wird von allen Eisenpulvermaterialien am meisten verwendet.

-2 & -14 Materialien: Die geringe Permeabilität dieser Materialien führt zu einer niedrigeren AC-Flussdichte als andere Materialien ohne zusätzlichen Lückenverlust. Das -14 Material ist ähnlich -2 Material mit einer höheren Permeabilität.

-2, -4, -6 & -7 Materialien: Dies sind die beliebtesten Carbonyleisenmischungen. Sie bieten hohe Q-Werte bis zu 40 MHz und sind am beliebtesten für Amateurfunk und eine Vielzahl anderer Kommunikationsanwendungen. Sie sind auch nützlich für moderate Bandtransformatoren im Frequenzbereich von 200 bis 400 MHz

KW-Balun 100-300 Watt je nach Balunart

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T130-2

Rpt

33.02

19.81

11.10

µ 10

110

±5%

1-30 MHz

29 mm

RF

PC

AL value (nominal)

11 nH/ N²

μi (reference)

µ 10

Density gm/cm3

5.0

Test Winding

N=100, #24 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.31  V

Coating Type

Red/Clear Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

8.28 cm

0.698 cm²

5.78 cm³

2.93 cm²

39.8 cm²

4.73 cm



Core Loss & Q

Q Test winding

#N/A

Q Frequenzy

#N/A

Q min on HP4342A

#N/A

where Bpk expressed in gauss, f expressed in hertz, and:

a=4.00E+09, b=3.00E+08, c=2.70E+06, d=9.60E-16

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

95.9%

94.8%

where H expressed in oersteds, and:

a=1.00E-02, b=1.83E-07, c=1.46, d=0.00



Wire Size

AWG

8

10

12

14

16

18

20

22

24

26

28

mm

3.150

2.500

2000

1.600

1.250

1000

0.800

0.630

0.500

0.400

0.315

Single Layer

Turns

14

18

22

29

36

46

58

73

91

114

142

RDC(Ω)

1.4 m

2.8 m

5.4 m

11.4 m

22.4 m

45.6 m

91.4 m

182.9 m

362.6 m

722.4 m

1.4

Full Winding

Turns

15

24

37

57

88

136

211

326

504

781

1.208

RDC(Ω)

1.5 m

3.7 m

9.1 m

22.3 m

54.8 m

134.7 m

332.4 m

816.7 m

2.0

4.9

12.2

T130-3

MATERIAL 3 (Permeabilität 35)

Ein "HP"-gepulvertes Carbonyleisenmaterial mit ausgezeichneter Stabilität und hoher Güte für niedrige Frequenzen um 50 kHz.

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T130-3

Grau

33.02

19.81

11.10

µ 35

350

±10%

0.05-5 MHz

38

gramm

RF

AL value (nominal)

35 nH/ N²

μi (reference)

µ 35

Density gm/cm3

6.5

Test Winding

N=100, #24 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.31  V

Coating Type

Gray/Clear Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

8.28 cm

0.698 cm²

5.78 cm³

2.93 cm²

39.8 cm²

4.73 cm



Core Loss

Bpk

140 G

Frequenzy

100 kHz

Core Loss (nominal)

31 mW/cm³

Core Loss (maximum)

36 mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=1.90E+09, b=2.00E+08, c=9.00E+05, d=4.30E-15

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

60.1%

53.7%

where H expressed in oersteds, and:

a=1.00E-02, b=3.49E-06, c=1.43, d=0.00



Wire Size

AWG

8

10

12

14

16

18

20

22

24

26

28

mm

3.150

2.500

2000

1.600

1.250

1000

0.800

0.630

0.500

0.400

0.315

Single Layer

Turns

14

18

22

29

36

46

58

73

91

114

142

RDC(Ω)

1.4 m

2.8 m

5.4 m

11.4 m

22.4 m

45.6 m

91.4 m

182.9 m

362.6 m

722.4 m

1.4

Full Winding

Turns

15

24

37

57

88

136

211

326

504

781

1.208

RDC(Ω)

1.5 m

3.7 m

9.1 m

22.3 m

54.8 m

134.7 m

332.4 m

816.7 m

2.0

4.9

12.2

T130-6

MATERIAL 6 (Permeabilität 8)

Ein "SF"-gepulvertes Eisenmaterial, das dem Material "2" sehr ähnelt, aber verbesserte Güte für höhere Frequenzen bis 50 MHz aufweist.



Kern

Farbe

Außen

mm

Innen

mm

Hähe

mm

Perme-abilität

AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich



Mass

(approximate)

Product Group

T130-6

Gelb

33.02

19.81

11.10

µ 8

96

±5%

2-50 MHz

29 gramm

RF

AL value (nominal)

9.6 nH/ N²

μi (reference)

µ 8

Density gm/cm3

5.0

Test Winding

N=100, #24 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.31  V

Coating Type

Yellow/Clear Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

8.28 cm

0.698 cm²

5.78 cm³

2.93 cm²

39.8 cm²

4.73 cm



Core Loss & Q

Q Test winding

N=10, #18AWG

Q Frequenzy

10 MHz

Q min on HP4342A

292

where Bpk expressed in gauss, f expressed in hertz, and:

a=4.00E+09, b=3.00E+08, c=2.70E+06, d=8.90E-16

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

98.1%

97.4%

where H expressed in oersteds, and:

a=1.00E-02, b=4.87E-08, c=1.57, d=0.00



Wire Size

AWG

8

10

12

14

16

18

20

22

24

26

28

mm

3.150

2.500

2000

1.600

1.250

1000

0.800

0.630

0.500

0.400

0.315

Single Layer

Turns

14

18

22

29

36

46

58

73

91

114

142

RDC(Ω)

1.4 m

2.8 m

5.4 m

11.4 m

22.4 m

45.6 m

91.4 m

182.9 m

362.6 m

722.4 m

1.4

Full Winding

Turns

15

24

37

57

88

136

211

326

504

781

1.208

RDC(Ω)

1.5 m

3.7 m

9.1 m

22.3 m

54.8 m

134.7 m

332.4 m

816.7 m

2.0

4.9

12.2



T130-11

MATERIAL 11 (Permeabilität 20)

Ein "C"-gepulvertes Carbonyleisenmaterial, das dem Material '13' sehr ähnelt, aber einen höheren Volumenwiderstand und eine größere Stabilität aufweist.

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität

AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T130-11

Blau

33.02

19.08

11.10

µ 20

200

±10%

0.05-5 MHz

37 gramm

RF

AL value (nominal)

20 nH/ N²

μi (reference)

µ 20

Density gm/cm3

6.4

Test Winding

N=100, #24 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.31  V

Coating Type

Blue/Clear Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

8.28 cm

0.698 cm²

5.78 cm³

2.93 cm²

39.8 cm²

4.73 cm



Core Loss

Bpk

140 G

Frequenzy

100 kHz

Core Loss (nominal)

31 mW/cm³

Core Loss (maximum)

36 mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=1.90E+09, b=2.00E+08, c=9.00E+05, d=4.30E-15

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

82.2%

78.0%

where H expressed in oersteds, and:

a=1.00E-02, b=1.14E-06, c=1.43, d=0.00



Wire Size

AWG

8

10

12

14

16

18

20

22

24

26

28

mm

3.150

2.500

2000

1.600

1.250

1000

0.800

0.630

0.500

0.400

0.315

Single Layer

Turns

14

18

22

29

36

46

58

73

91

114

142

RDC(Ω)

1.4 m

2.8 m

5.4 m

11.4 m

22.4 m

45.6 m

91.4 m

182.9 m

362.6 m

722.4 m

1.4

Full Winding

Turns

15

24

37

57

88

136

211

326

504

781

1.208

RDC(Ω)

1.5 m

3.7 m

9.1 m

22.3 m

54.8 m

134.7 m

332.4 m

816.7 m

2.0

4.9

12.2

T130-13

MATERIAL 13 (Permeabilität 35)

Ein "HP"-gepulvertes Carbonyleisenmaterial mit ausgezeichneter Stabilität und hoher Güte für niedrige Frequenzen um 50 kHz.

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T130-13

Grau

33.02

19.81

11.10

µ 35

350

±10%

0.05-5 MHz

38

gramm

RF

AL value (nominal)

35 nH/ N²

μi (reference)

µ 35

Density gm/cm3

6.5

Test Winding

N=100, #24 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.31  V

Coating Type

Gray/Clear Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

8.28 cm

0.698 cm²

5.78 cm³

2.93 cm²

39.8 cm²

4.73 cm



Core Loss

Bpk

140 G

Frequenzy

100 kHz

Core Loss (nominal)

31 mW/cm³

Core Loss (maximum)

36 mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=1.90E+09, b=2.00E+08, c=9.00E+05, d=4.30E-15

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

60.1%

53.7%

where H expressed in oersteds, and:

a=1.00E-02, b=3.49E-06, c=1.43, d=0.00



Wire Size

AWG

8

10

12

14

16

18

20

22

24

26

28

mm

3.150

2.500

2000

1.600

1.250

1000

0.800

0.630

0.500

0.400

0.315

Single Layer

Turns

14

18

22

29

36

46

58

73

91

114

142

RDC(Ω)

1.4 m

2.8 m

5.4 m

11.4 m

22.4 m

45.6 m

91.4 m

182.9 m

362.6 m

722.4 m

1.4

Full Winding

Turns

15

24

37

57

88

136

211

326

504

781

1.208

RDC(Ω)

1.5 m

3.7 m

9.1 m

22.3 m

54.8 m

134.7 m

332.4 m

816.7 m

2.0

4.9

12.2

T130-15

MATERIAL 15 (Permeabilität 25)

Ein "GS-6"-gepulvertes Eisenmaterial (Carbonyl), das gute Stabilität für kommerzielle Rundfunkfrequenzen bietet, wo hohe Güte und eine gleichmäßige Permeabilität erforderlich sind.



Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group





T130-15

Rot/

Weiß

33.02

19.81

11.10

µ 25

250

±10%

0.1-2 MHz

37

gramm

RF





AL value (nominal)

25 nH/ N²





μi (reference)

µ 25





Density gm/cm3

6.4





Test Winding

N=100, #24 AWG





Frequency

10 kHz





Voltage on Agilent 4284A

0.31  V





Coating Type

Red/White Epoxy Paint





Voltage Breakdown (min.)

500 Vrms, 60Hz





Limit

0.1 mA, 5 s





Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn





8.28 cm

0.698 cm²

5.78 cm³

2.93 cm²

39.8 cm²

4.73 cm







Core Loss

Bpk

140 G





Frequenzy

100 kHz





Core Loss (nominal)

31 mW/cm³





Core Loss (maximum)

36 mW/cm³





where Bpk expressed in gauss, f expressed in hertz, and:

a=1.90E+09, b=2.00E+08, c=9.00E+05, d=5.00E-15





DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

74.7%

69.4%





where H expressed in oersteds, and:

a=1.00E-02, b=1.78E-06, c=1.43, d=0.00







Wire Size

AWG

8

10

12

14

16

18

20

22

24

26

28



mm

3.150

2.500

2000

1.600

1.250

1000

0.800

0.630

0.500

0.400

0.315



Single Layer

Turns

14

18

22

29

36

46

58

73

91

114

142



RDC(Ω)

1.4 m

2.8 m

5.4 m

11.4 m

22.4 m

45.6 m

91.4 m

182.9 m

362.6 m

722.4 m

1.4



Full Winding

Turns

15

24

37

57

88

136

211

326

504

781

1.208



RDC(Ω)

1.5 m

3.7 m

9.1 m

22.3 m

54.8 m

134.7 m

332.4 m

816.7 m

2.0

4.9

12.2







T130-17

MATERIAL 17  (Permeabilität 4)

DL2NBU siehe Internet: www.bavarian-contest-club.de

Für 10m-15m-20m-40m-80m-160m

Bis 100 Watt Bandpassfilter nach W3NQN

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T130-17

Blau/

Gelb

33.02

19.81

11.10

µ 4

40

±5%

50-200 MHz

28

gramm

RF

AL value (nominal)

4.0 nH/ N²

μi (reference)

µ 4

Density gm/cm3

54.8

Test Winding

N=100, #24 AWG

Frequency

1 MHz

Voltage on Agilent 4284A

1.0 V

Coating Type

Blue/Yellow Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

8.28 cm

0.698 cm²

5.78 cm³

2.93 cm²

39.8 cm²

4.73 cm



Core Loss & Q

Q Test winding

N=6, #20 AWG

Q Frequenzy

40 MHz

Q min on HP4342A

171

where Bpk expressed in gauss, f expressed in hertz, and:

a=4.00E+09, b=3.00E+08, c=2.70E+06, d=4.40E-16

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

99.5%

99.4%

where H expressed in oersteds, and:

a=1.00E-02, b=1.34E-08, c=1.55, d=0.00



Wire Size

AWG

8

10

12

14

16

18

20

22

24

26

28

mm

3.150

2.500

2000

1.600

1.250

1000

0.800

0.630

0.500

0.400

0.315

Single Layer

Turns

14

18

22

29

36

46

58

73

91

114

142

RDC(Ω)

1.4 m

2.8 m

5.4 m

11.4 m

22.4 m

45.6 m

91.4 m

182.9 m

362.6 m

722.4 m

1.4

Full Winding

Turns

15

24

37

57

88

136

211

326

504

781

1.208

RDC(Ω)

1.5 m

3.7 m

9.1 m

22.3 m

54.8 m

134.7 m

332.4 m

816.7 m

2.0

4.9

12.2



T130-17

MATERIAL 17  (Permeabilität 4)

DL2NBU siehe Internet: www.bavarian-contest-club.de

Für 10m-15m-20m-40m-80m-160m

Bis 100 Watt Bandpassfilter nach W3NQN-   14er Pack Bandpassfilter W3NQN -


Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T130-17

Blau/

Gelb

33.02

19.81

11.10

µ 4

40

±5%

50-200 MHz

28

gramm

RF

AL value (nominal)

4.0 nH/ N²

μi (reference)

µ 4

Density gm/cm3

54.8

Test Winding

N=100, #24 AWG

Frequency

1 MHz

Voltage on Agilent 4284A

1.0 V

Coating Type

Blue/Yellow Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

8.28 cm

0.698 cm²

5.78 cm³

2.93 cm²

39.8 cm²

4.73 cm



Core Loss & Q

Q Test winding

N=6, #20 AWG

Q Frequenzy

40 MHz

Q min on HP4342A

171

where Bpk expressed in gauss, f expressed in hertz, and:

a=4.00E+09, b=3.00E+08, c=2.70E+06, d=4.40E-16

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

99.5%

99.4%

where H expressed in oersteds, and:

a=1.00E-02, b=1.34E-08, c=1.55, d=0.00



Wire Size

AWG

8

10

12

14

16

18

20

22

24

26

28

mm

3.150

2.500

2000

1.600

1.250

1000

0.800

0.630

0.500

0.400

0.315

Single Layer

Turns

14

18

22

29

36

46

58

73

91

114

142

RDC(Ω)

1.4 m

2.8 m

5.4 m

11.4 m

22.4 m

45.6 m

91.4 m

182.9 m

362.6 m

722.4 m

1.4

Full Winding

Turns

15

24

37

57

88

136

211

326

504

781

1.208

RDC(Ω)

1.5 m

3.7 m

9.1 m

22.3 m

54.8 m

134.7 m

332.4 m

816.7 m

2.0

4.9

12.2

T130-18

MATERIAL 18 (Permeabilität 55)

Dieses Material hat einen geringen Kernverlust wie das Material -8 mit höherer Permeabilität. Gute DC-Sättigungseigenschaften.

Für Leistungsanwendung 50/60Hz - bis 500 kHz



Preis-und Lieferzeit auf Anfrage

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group



T130-18

Grün/Rot

33.02

19.81

11.10

µ 55

580

±10%

DC-Drosseln-Leistungs-drossel

38

gramm

PC



AL value (nominal)

58.0 nH/ N²



μi (reference)

µ 55



Density gm/cm3

6.6



Test Winding

N=100, #24 AWG



Frequency

10 kHz



Voltage on Agilent 4284A

0.31  V



Coating Type

Green/Red Epoxy Paint



Voltage Breakdown (min.)

500 Vrms, 60Hz



Limit

0.1 mA, 5 s



Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn



8.28 cm

0.698 cm²

5.78 cm³

2.93 cm²

39.8 cm²

4.73 cm





Core Loss

Bpk

140 G



Frequenzy

100 kHz



Core Loss (nominal)

46 mW/cm³



Core Loss (maximum)

53 mW/cm³



where Bpk expressed in gauss, f expressed in hertz, and:

a=8.00E+08, b=1.70E+08, c=9.00E+05, d=3.10E-14



DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

100 Oe

51.4%

43.9%



where H expressed in oersteds, and:

a=1.00E-02, b=1.78E-06, c=1.43, d=0.00





Wire Size

AWG

8

10

12

14

16

18

20

22

24

26

28

mm

3.150

2.500

2000

1.600

1.250

1000

0.800

0.630

0.500

0.400

0.315

Single Layer

Turns

14

18

22

29

36

46

58

73

91

114

142

RDC(Ω)

1.4 m

2.8 m

5.4 m

11.4 m

22.4 m

45.6 m

91.4 m

182.9 m

362.6 m

722.4 m

1.4

Full Winding

Turns

15

24

37

57

88

136

211

326

504

781

1.208

RDC(Ω)

1.5 m

3.7 m

9.1 m

22.3 m

54.8 m

134.7 m

332.4 m

816.7 m

2.0

4.9

12.2





T130-25

MATERIAL 25 (Permeabilität 25)

Ein "GS-6"-gepulvertes Eisenmaterial (Carbonyl), das gute Stabilität für kommerzielle Rundfunkfrequenzen bietet, wo hohe Güte und eine gleichmäßige Permeabilität erforderlich sind.



Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group



T130-25

Weiß/Rot

33.02

19.81

11.10

µ 25

250

±10%

0.1-2 MHz

37

gramm

RF



AL value (nominal)

25 nH/ N²



μi (reference)

µ 25



Density gm/cm3

6.4



Test Winding

N=100, #24 AWG



Frequency

10 kHz



Voltage on Agilent 4284A

0.31  V



Coating Type

Red/White Epoxy Paint



Voltage Breakdown (min.)

500 Vrms, 60Hz



Limit

0.1 mA, 5 s



Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn



8.28 cm

0.698 cm²

5.78 cm³

2.93 cm²

39.8 cm²

4.73 cm





Core Loss

Bpk

140 G



Frequenzy

100 kHz



Core Loss (nominal)

31 mW/cm³



Core Loss (maximum)

36 mW/cm³



where Bpk expressed in gauss, f expressed in hertz, and:

a=1.90E+09, b=2.00E+08, c=9.00E+05, d=5.00E-15



DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

74.7%

69.4%



where H expressed in oersteds, and:

a=1.00E-02, b=1.78E-06, c=1.43, d=0.00





Wire Size

AWG

8

10

12

14

16

18

20

22

24

26

28

mm

3.150

2.500

2000

1.600

1.250

1000

0.800

0.630

0.500

0.400

0.315

Single Layer

Turns

14

18

22

29

36

46

58

73

91

114

142

RDC(Ω)

1.4 m

2.8 m

5.4 m

11.4 m

22.4 m

45.6 m

91.4 m

182.9 m

362.6 m

722.4 m

1.4

Full Winding

Turns

15

24

37

57

88

136

211

326

504

781

1.208

RDC(Ω)

1.5 m

3.7 m

9.1 m

22.3 m

54.8 m

134.7 m

332.4 m

816.7 m

2.0

4.9

12.2



T130-26

MATERIAL 26 (Permeabilität 70)

-26- & 36 Material: Ein sehr populäres Material, es ist ein kostengünstiges Allzweckmaterial, das in einer Vielzahl von Stromumwandlungs- und Netzfilteranwendungen nützlich ist.

Ein wasserstoffreduziertes Eisenmaterial, das Material '41' sehr ähnelt, aber einen erweiterten Frequenzbereich bietet.

50/60Hz - bis 500 kHz für Leistungsan

Bevorzugte Anwendungsbereiche:
Licht-Dimmer-Drosseln 50/60 Hz,

EMI-Netz Drosseln

DC-Drosseln <50 kHz

Leistungsfaktor-Korrektur Drosseln <50 kHz.

T130-26

Gelb/

Weiß

33.02

19.81

11.10

µ 70

810

±10%

DC-Drosseln-Leistungs-drossel

40

gramm

PC

AL value (nominal)

81 nH/ N²

μi (reference)

µ 70

Density gm/cm3

7.0

Test Winding

N=10, #24 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.31  V

Coating Type

Yellow/White Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

8.28 cm

0.698 cm²

5.78 cm³

2.93 cm²

39.8 cm²

4.73 cm



Core Loss

Bpk

140 G

Frequenzy

100 kHz

Core Loss (nominal)

83 mW/cm³

Core Loss (maximum)

95 mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=1.00E+09, b=1.10E+08, c=1.90E+06, d=1.90E-13

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

50 Oe

55.2%

47.4%

where H expressed in oersteds, and:

a=1.00E-02, b=9.70E-06, c=1.72, d=0.00



Wire Size

AWG

8

10

12

14

16

18

20

22

24

26

28

mm

3.150

2.500

2000

1.600

1.250

1000

0.800

0.630

0.500

0.400

0.315

Single Layer

Turns

14

18

22

29

36

46

58

73

91

114

142

RDC(Ω)

1.4 m

2.8 m

5.4 m

11.4 m

22.4 m

45.6 m

91.4 m

182.9 m

362.6 m

722.4 m

1.4

Full Winding

Turns

15

24

37

57

88

136

211

326

504

781

1.208

RDC(Ω)

1.5 m

3.7 m

9.1 m

22.3 m

54.8 m

134.7 m

332.4 m

816.7 m

2.0

4.9

12.2



T130-36

MATERIAL 36 (Permeabilität 75)

-26- & 36 Material: Ein sehr populäres Material, es ist ein kostengünstiges Allzweckmaterial, das in einer Vielzahl von Stromumwandlungs- und Netzfilteranwendungen nützlich ist.

Ein wasserstoffreduziertes Eisenmaterial, das Material '41' sehr ähnelt, aber einen erweiterten Frequenzbereich bietet.

50/60Hz - bis 500 kHz für Leistungsan

Bevorzugte Anwendungsbereiche:
Licht-Dimmer-Drosseln 50/60 Hz,

EMI-Netz Drosseln

DC-Drosseln <50 kHz

Leistungsfaktor-Korrektur Drosseln <50 kHz.





mat52

T130-52

-52 Material: Dieses Material hat geringere Kernverluste bei hoher Frequenz und die gleiche Durchlässigkeit wie das -26 und -36  Material. Es ist beliebt für Hochfrequenz-Choke-Designs und in einer Vielzahl von Geometrien verfügbar.

‐52 Material: This material has lower core losses at high frequency and the same permeability as the ‐26 and -36 Material. It is popular for high frequency choke designs and available in a wide variety of geometries.

Material 52 (Permeabilität 75)

50/60 Hz- Differential mode EMI Line-Chokes

z.B.350 µ H -100 Umdrehungen=35,0nH/N²

IRON POWDER TOROIDAL CORES FOR POWER AND AC LINE FILTER







Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T130-52

Grün/

Blau

33.02

19.81

11.10

µ 75

790

±10%

(>)50 kHz

40 gramm

PC

AL value (nominal)

79 nH/ N²

μi (reference)

µ 75

Density gm/cm3

7.0

Test Winding

N=10, #24 AWG

Frequency

10 kHz

Voltage on Agilent 4284A

0.31  V

Coating Type

Green/Blue Epoxy Paint

Voltage Breakdown (min.)

500 Vrms, 60Hz

Limit

0.1 mA, 5 s

Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn

8.28 cm

0.698 cm²

5.78 cm³

2.93 cm²

39.8 cm²

4.73 cm



Core Loss

Bpk

140 G

Frequenzy

100 kHz

Core Loss (nominal)

58 mW/cm³

Core Loss (maximum)

67 mW/cm³

where Bpk expressed in gauss, f expressed in hertz, and:

a=1.00E+09, b=1.10E+08, c=2.10E+06, d=6.90E-14

DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

50 Oe

61.6%

53.4%

where H expressed in oersteds, and:

a=1.00E-02, b=4.66E-06, c=1.84, d=0.00



Wire Size

AWG

8

10

12

14

16

18

20

22

24

26

28

mm

3.150

2.500

2000

1.600

1.250

1000

0.800

0.630

0.500

0.400

0.315

Single Layer

Turns

14

18

22

29

36

46

58

73

91

114

142

RDC(Ω)

1.4 m

2.8 m

5.4 m

11.4 m

22.4 m

45.6 m

91.4 m

182.9 m

362.6 m

722.4 m

1.4

Full Winding

Turns

15

24

37

57

88

136

211

326

504

781

1.208

RDC(Ω)

1.5 m

3.7 m

9.1 m

22.3 m

54.8 m

134.7 m

332.4 m

816.7 m

2.0

4.9

12.2



T157-1

MATERIAL 1 (Permeabilität 20)

Ein "C"-gepulvertes Carbonyleisenmaterial, das dem Material '13' sehr ähnelt, aber einen höheren Volumenwiderstand und eine größere Stabilität aufweist.

Kern

Farbe

Außen

mm

Innen

mm

Höhe

mm

Perme-abilität



AL (nH/100Wdgg.2)

AL-Toleranz

Frequenz-bereich

Mass

(approximate)

Product Group

T157-1

Blau

39.88

24.13

14.48

µ 20

320

±10%

0.05-5 MHz

68

gramm

RF

AL value (nominal)

320 nH/ N²



μi (reference)

µ 20



Density gm/cm3

6.4



Test Winding

N=100, #24 AWG



Frequency

10 kHz



Voltage on Agilent 4284A

0.47  V



Coating Type

Green/ClearEpoxy Paint



Voltage Breakdown (min.)

500 Vrms, 60Hz



Limit

0.1 mA, 5 s



Magnetic

Dimensions

Le Eff. Mag. Path Length (cm)

Ae

Eff. Mag. Cross Section (cm2)

Veff Eff. Core Volume (cm3)

WA - Min. Eff. Window Area

sa - Surface Area

mlt - mean length per turn



10.1 cm

1.06 cm²

10.7 cm³

4.34 cm²

59.7 cm²

5.92 cm





Core Loss

Bpk

140 G



Frequenzy

100 kHz



Core Loss (nominal)

31mW/cm³



Core Loss (maximum)

36mW/cm³



where Bpk expressed in gauss, f expressed in hertz, and:

a=1.90E+09, b=2.00E+08, c=9.00E+05, d=4.30E-15



DC Saturation

HDC

Percent Initial Perm (nom.)

Percent Initial Perm (min.)

200 Oe

82.2%

78.0%



where H expressed in oersteds, and:

a=1.00E-02, b=1.14E-06, c=1.43, d=0.00



Wire Size

AWG

8

10

12

14

16

18

20

22

24

26

28



mm

3.150

2.500

2000

1.600

1.250

1000

0.800

0.630

0.500

0.400

0.315



Single Layer

Turns

17

22

28

36

45

57

71

89

111

139

174



RDC(Ω)

2.1 m

4.3 m

8.6 m

17.6 m

35.1 m

70.6 m

140.0 m

279.0 m

553.4 m

1.1

2.2



Full Winding

Turnes

23

35

54

84

130

202

312

483

747

1,157

1,790



RDC(Ω)

2.8 m

6.8 m

16.6 m

41.2 m

101.3 m

250.4 m

615.0 m

1.5

3.7

9.2

22.6
