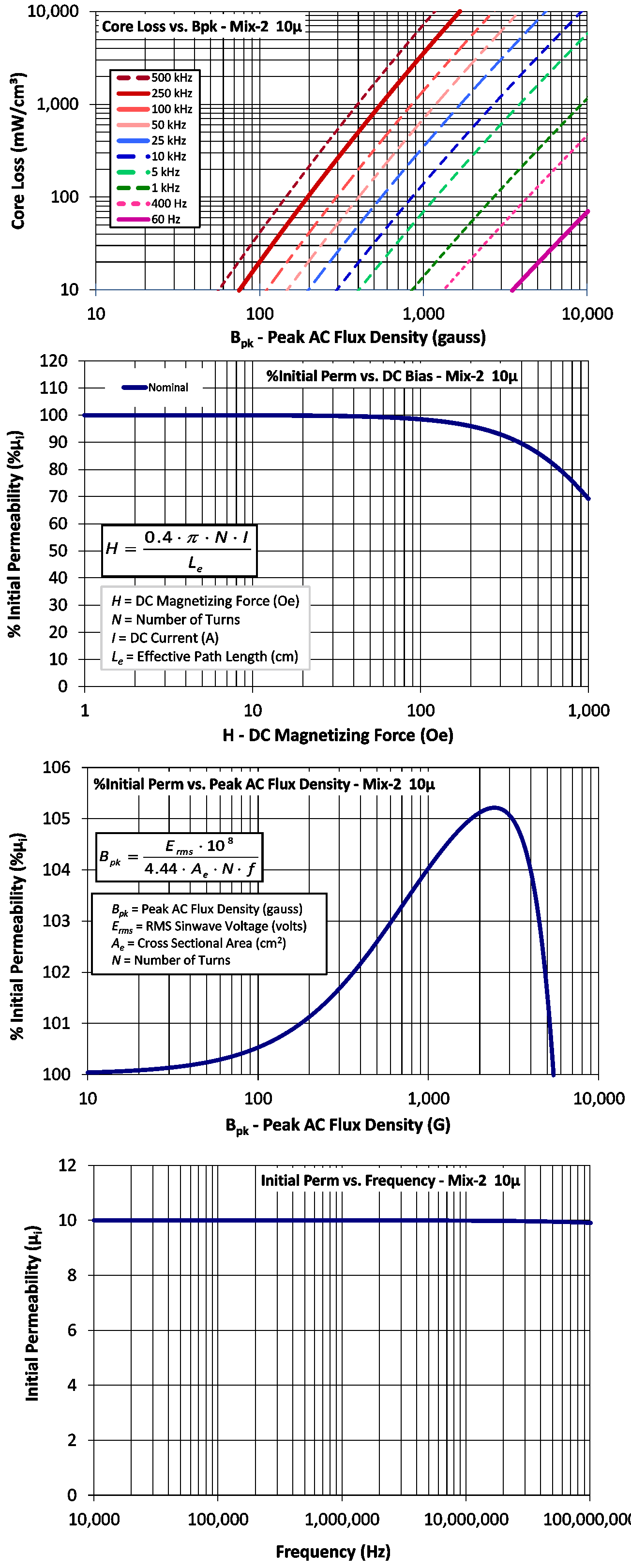

Q-Kurven Material 2
|
μi(reference) |
10 |
|
Color |
Red/Clear |
|
Density |
5.0 gm/cm3 |
|
Bsat |
14.8 kG |
|
Core Loss (100kHz, 140g) |
18 mW/cm³ (nom) 20 mW/cm³ (max) |
|
%Perm at DC Bias (200 Oe) |
95.9% (nom) 94.8% (min) |
|
μi(reference) |
10 |
|
Color |
Red/Clear |
|
Density |
5.0 gm/cm3 |
|
Bsat |
14.8 kG |
|
Core Loss (100kHz, 140g) |
18 mW/cm³ (nom) 20 mW/cm³ (max) |
|
%Perm at DC Bias (200 Oe) |
95.9% (nom) 94.8% (min) |
