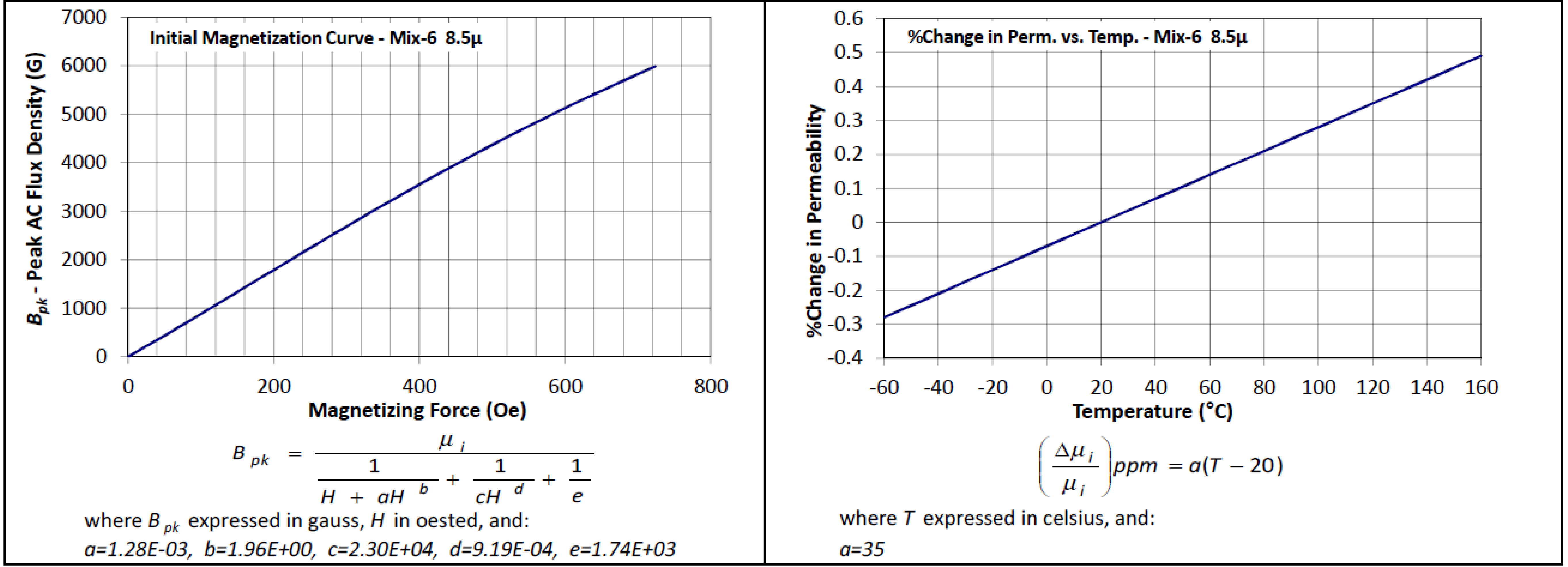

Q-Kurven Material 6
|
Material 6 | ||
|
μi(reference) |
8 |
|
|
Color |
Yellow/Clear | |
|
Density |
5.0 gm/cm3 | |
|
Bsat |
14.8 kG | |
|
Core Loss (100kHz, 140g) |
18 mW/cm³ (nom) 20 mW/cm³ (max) | |
|
%Perm at DC Bias (200 Oe) |
98.1% (nom) 97.4% (min) | |
|
Material 6 | ||
|
μi(reference) |
8 |
|
|
Color |
Yellow/Clear | |
|
Density |
5.0 gm/cm3 | |
|
Bsat |
14.8 kG | |
|
Core Loss (100kHz, 140g) |
18 mW/cm³ (nom) 20 mW/cm³ (max) | |
|
%Perm at DC Bias (200 Oe) |
98.1% (nom) 97.4% (min) | |
