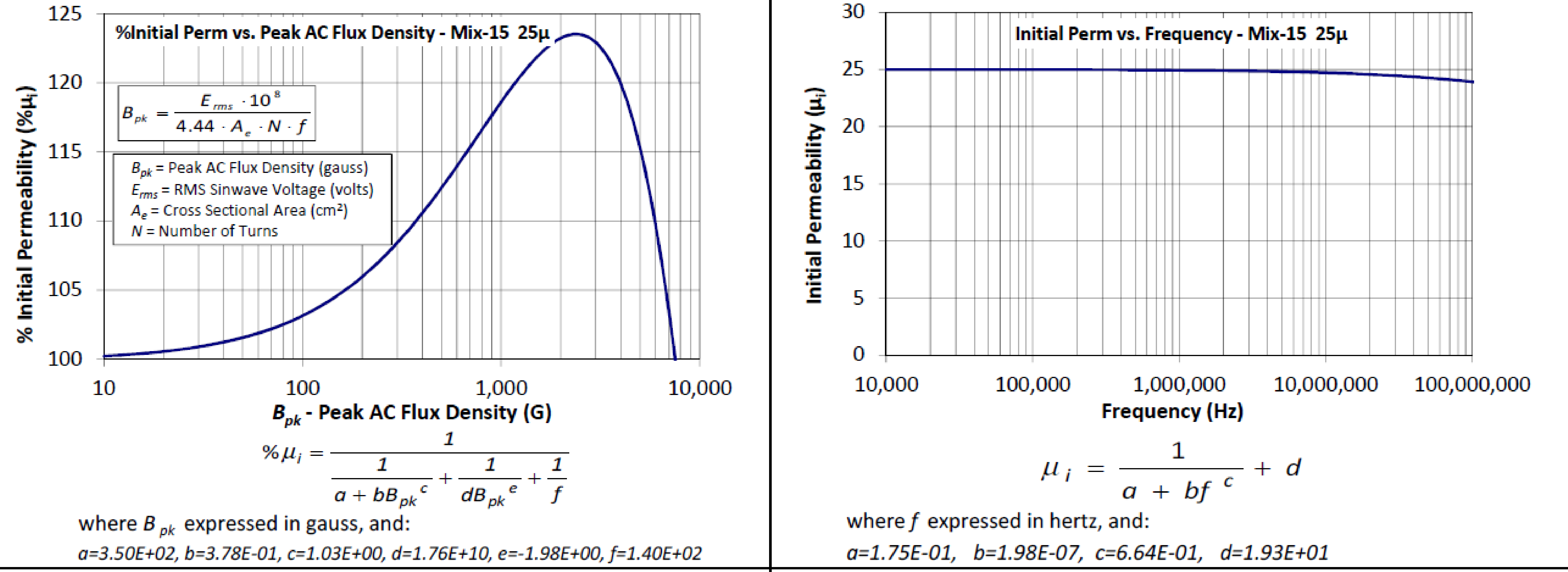

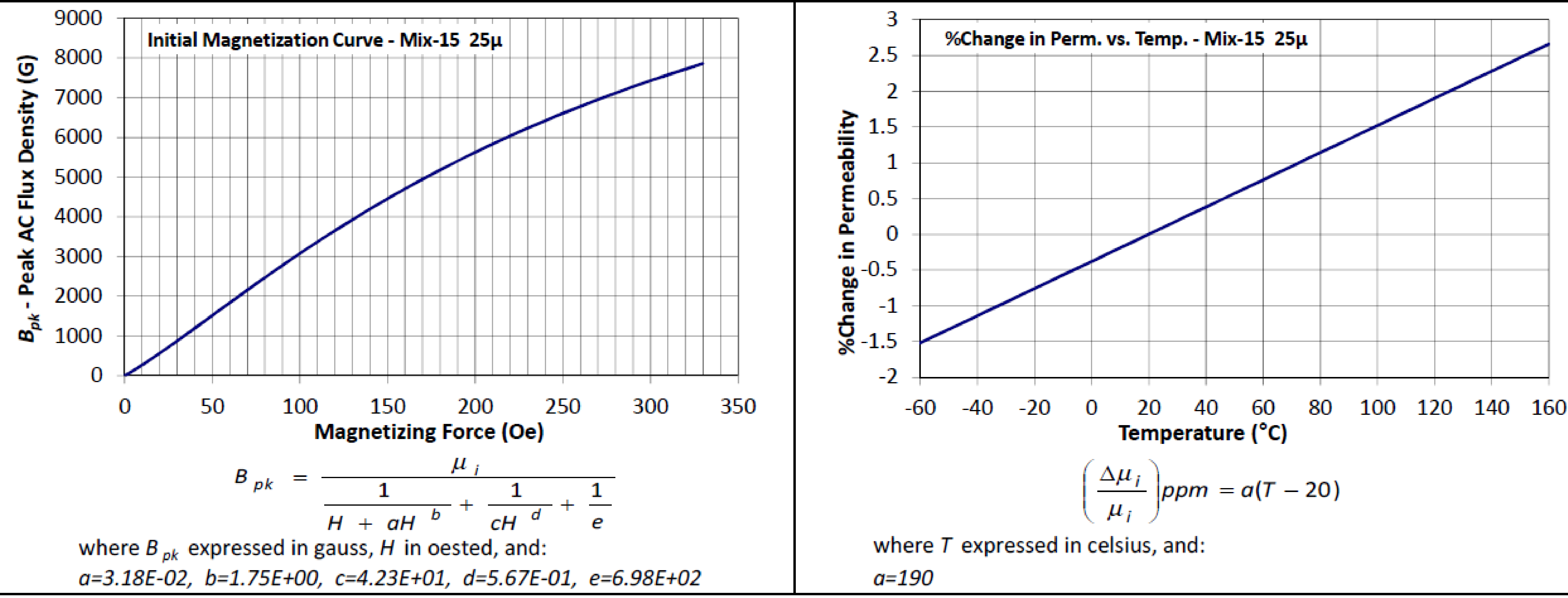

Q-Kurven Material 15
|
Material 15 | ||
|
μi(reference) |
25 |
|
|
Color |
Red/White | |
|
Density |
6.4 gm/cm3 | |
|
Bsat |
17.5kG | |
|
Core Loss (100kHz, 140g) |
32 mW/cm³ (nom) 36 mW/cm³ (max) | |
|
%Perm at DC Bias (200 Oe) |
74.7% (nom) % (min) | |
|
Material 15 | ||
|
μi(reference) |
25 |
|
|
Color |
Red/White | |
|
Density |
6.4 gm/cm3 | |
|
Bsat |
17.5kG | |
|
Core Loss (100kHz, 140g) |
32 mW/cm³ (nom) 36 mW/cm³ (max) | |
|
%Perm at DC Bias (200 Oe) |
74.7% (nom) % (min) | |
