Q-Kurven Material 19
|
Material 19 | ||
|
µi (reference) |
55 |
|
|

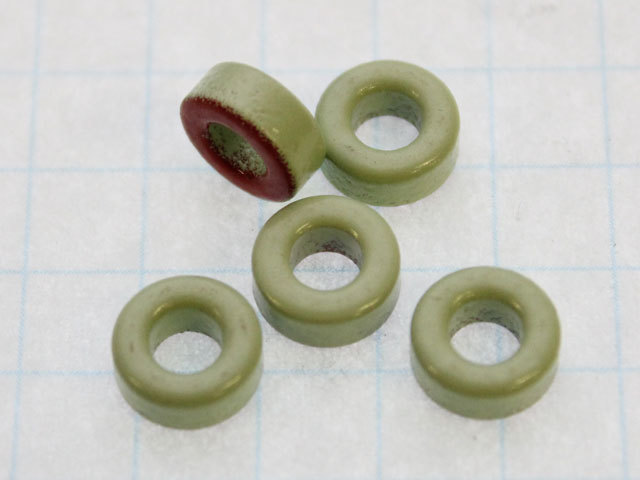

Color |
Rot/Grün | |
|
Density |
6.8 gm/cm3 | |
|
Bsat |
18.2 kG | |
|

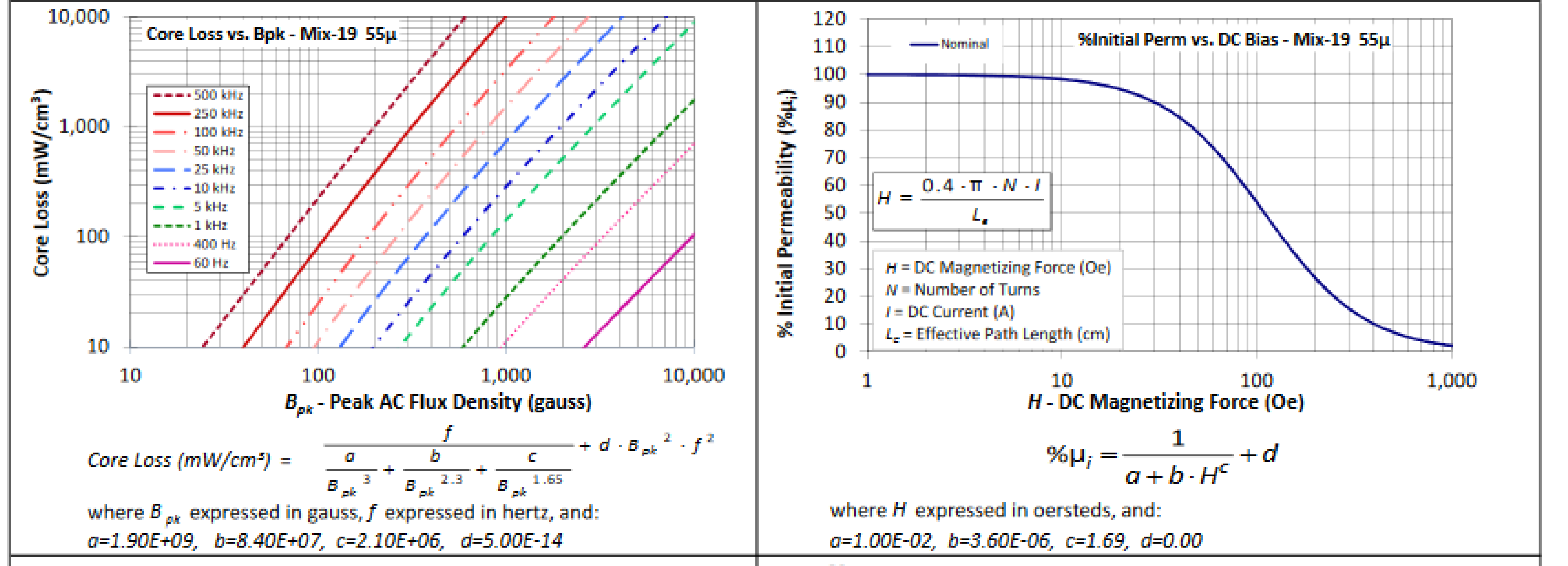

Core Loss (100kHz, 140g) |
54 mW/cm³ (nom) 62 mW/cm³ (max) | |
|
%Perm at DC Bias (100 Oe) |
53.8% (nom) 46.2% (min) | |
|
