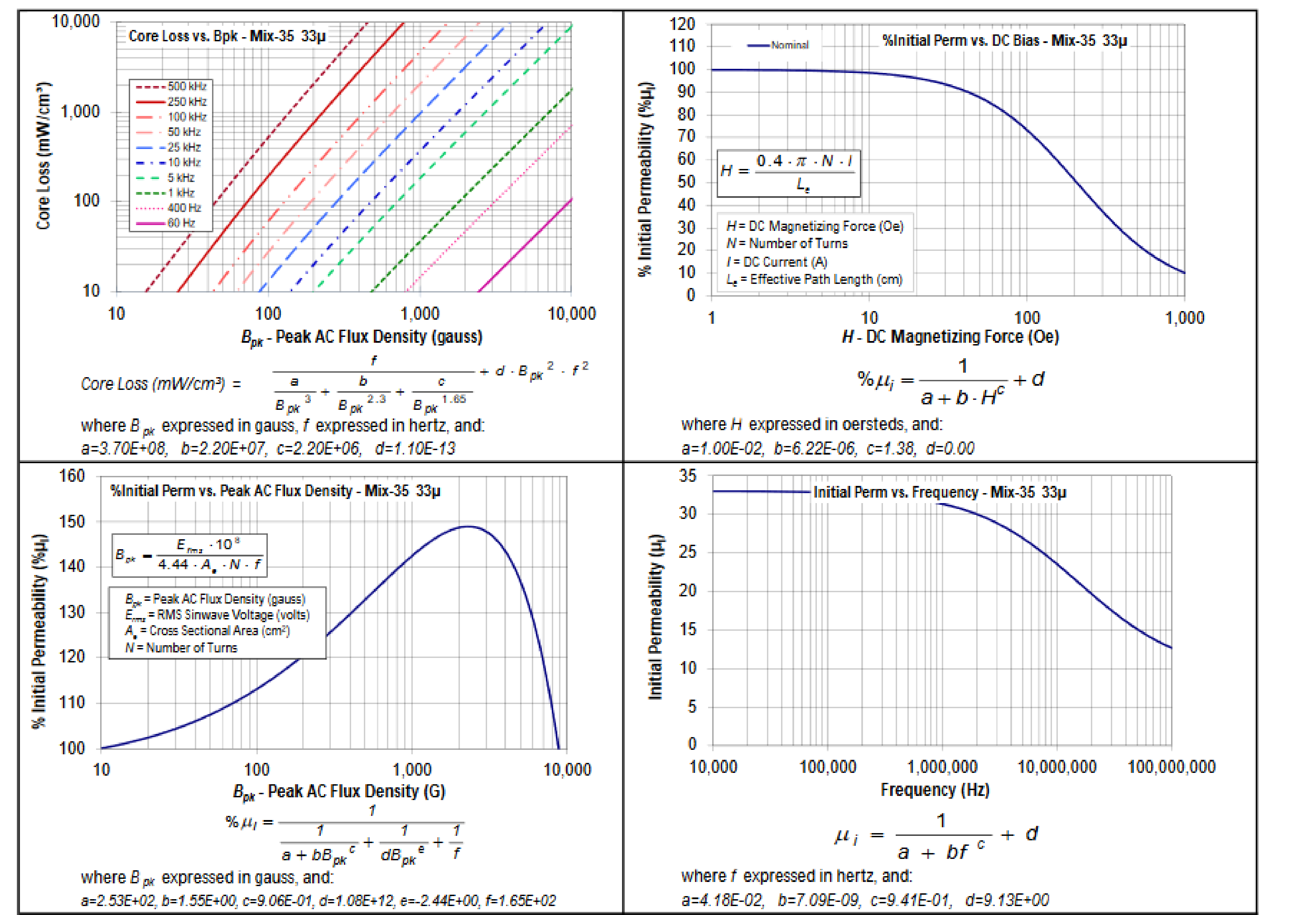

Q-Kurven Material 35
|
Material 35 | ||
|
µi (reference) |
33 |
|
|
Color |
Gelb/Grau | |
|
Density |
6.3 gm/cm3 | |
|
Bsat |
17.3 kG | |
|
Core Loss (100kHz, 140g) |
119 mW/cm³ (nom) 137 mW/cm³ (max) | |
|
%Perm at DC Bias (100 Oe) |
73.3% (nom) 68.0% (min) | |
|
