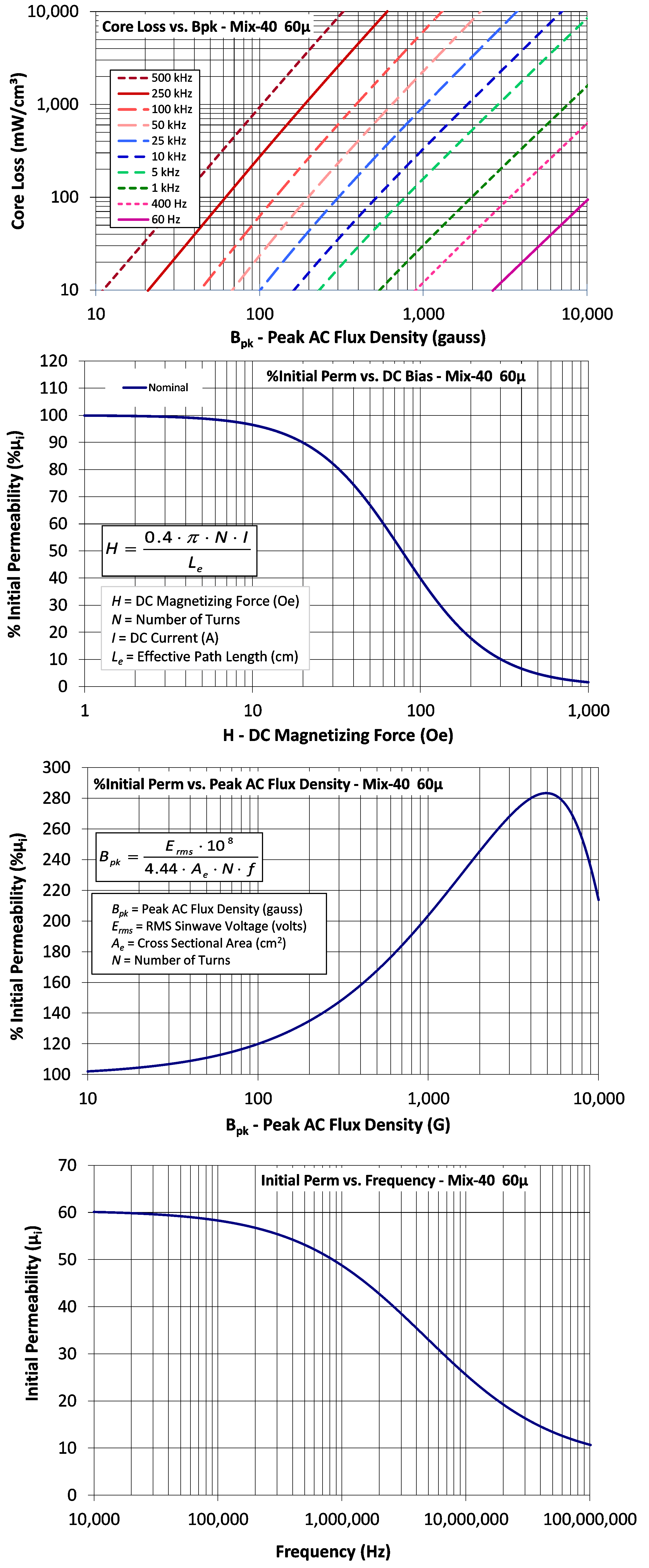

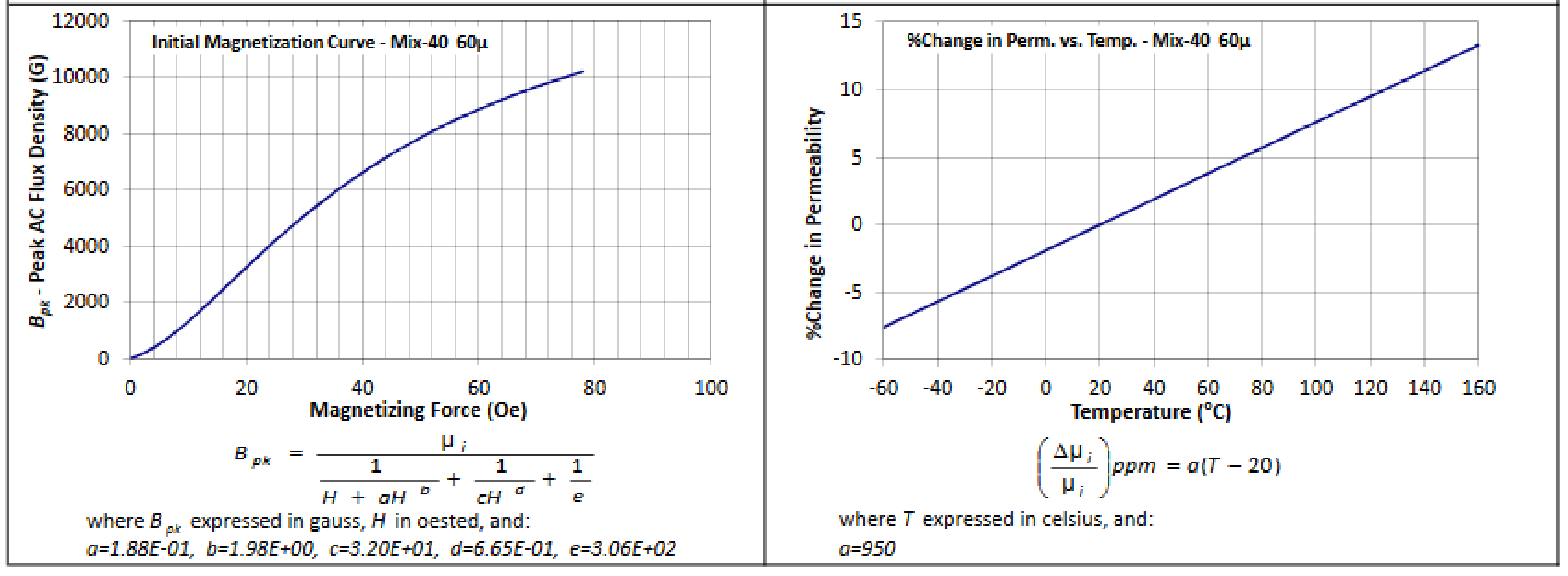

Q-Kurven Material 40
|
Material 40 | ||
|
µi (reference) |
60 |
|
|
Color |
Grün/Gelb | |
|
Density |
6.9 gm/cm3 | |
|
Bsat |
18.4 kG | |
|
Core Loss (100kHz, 140g) |
127 mW/cm³ (nom) 146 mW/cm³ (max) | |
|
%Perm at DC Bias (50 Oe) |
67.0% (nom) 60.2% (min) | |
|
