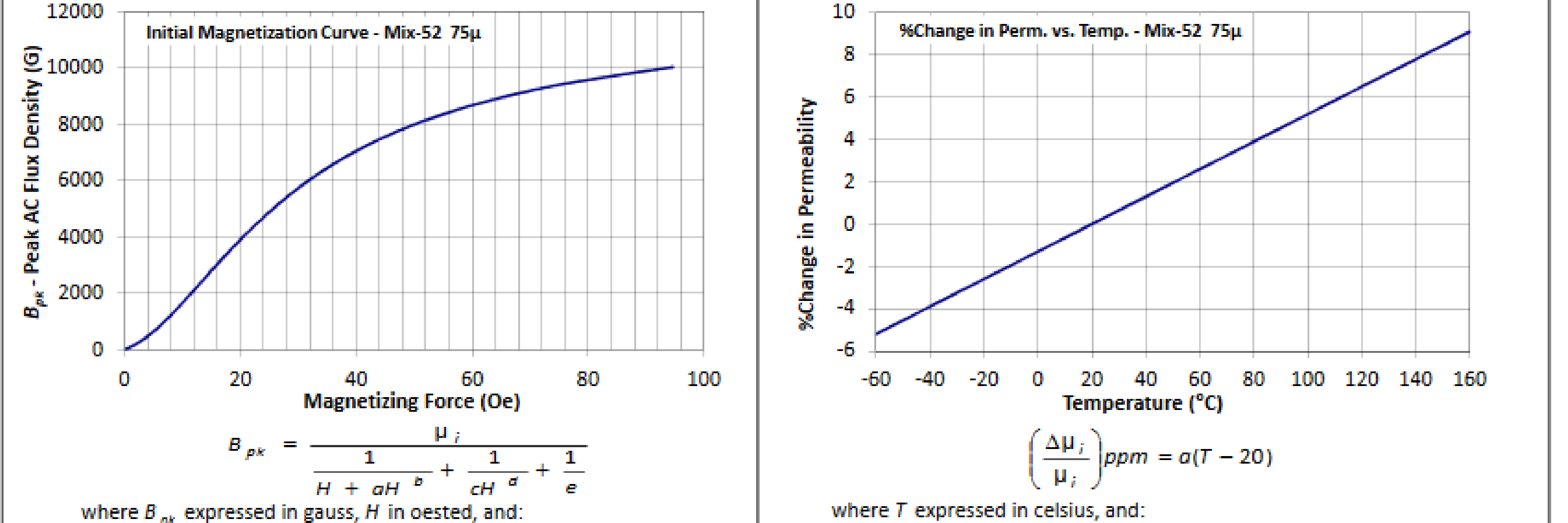

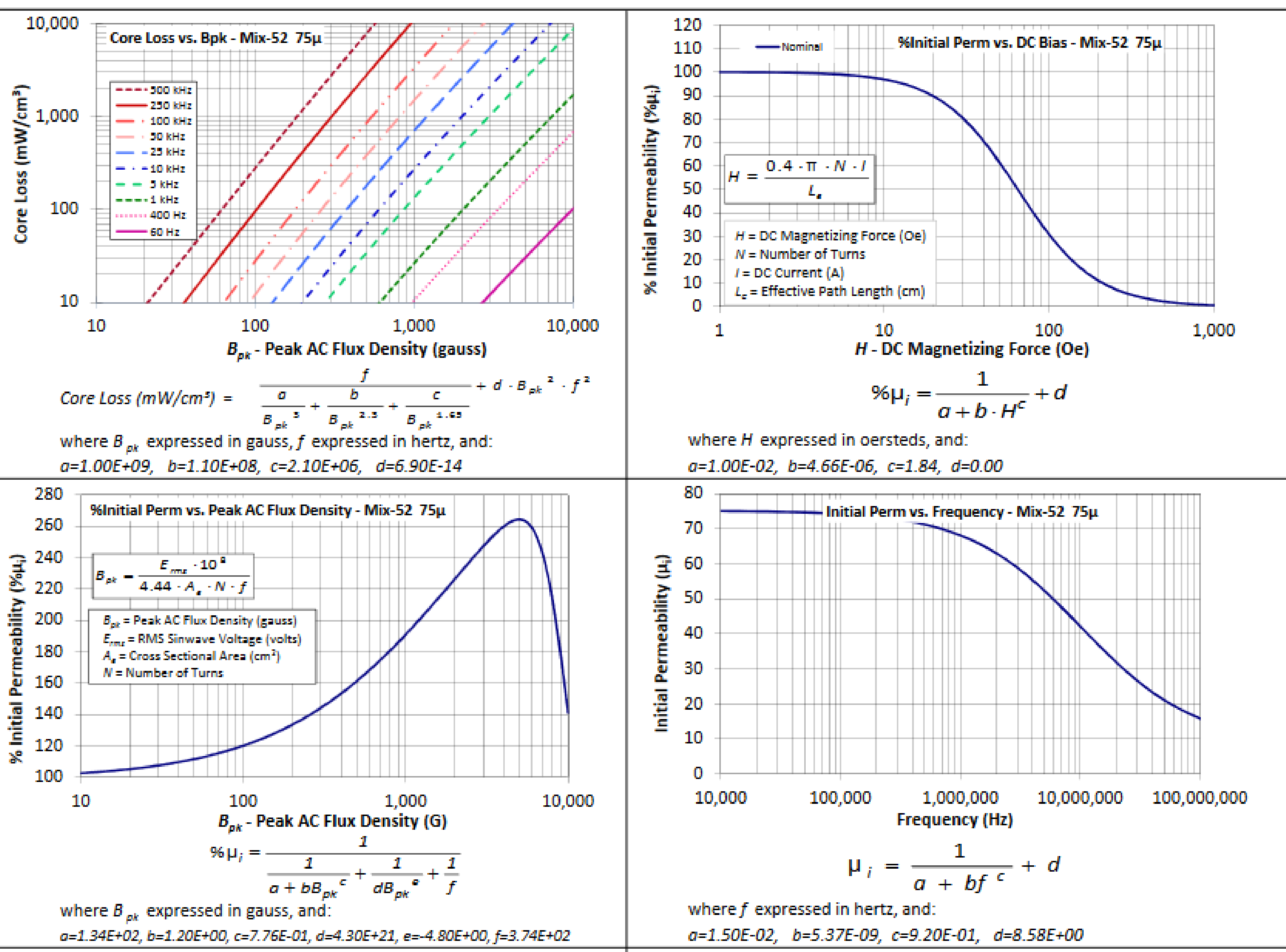

Q-Kurven Material 52
|
Material 52 | ||
|
µi (reference) |
75 |
|
|
Color |
Grün/Blau | |
|
Density |
7.0 gm/cm3 | |
|
Bsat |
18.5 kG | |
|
Core Loss (100kHz, 140g) |
58 mW/cm³ (nom) 67 mW/cm³ (max) | |
|
%Perm at DC Bias (50 Oe) |
61.6% (nom) 53.4% (min) | |
|
