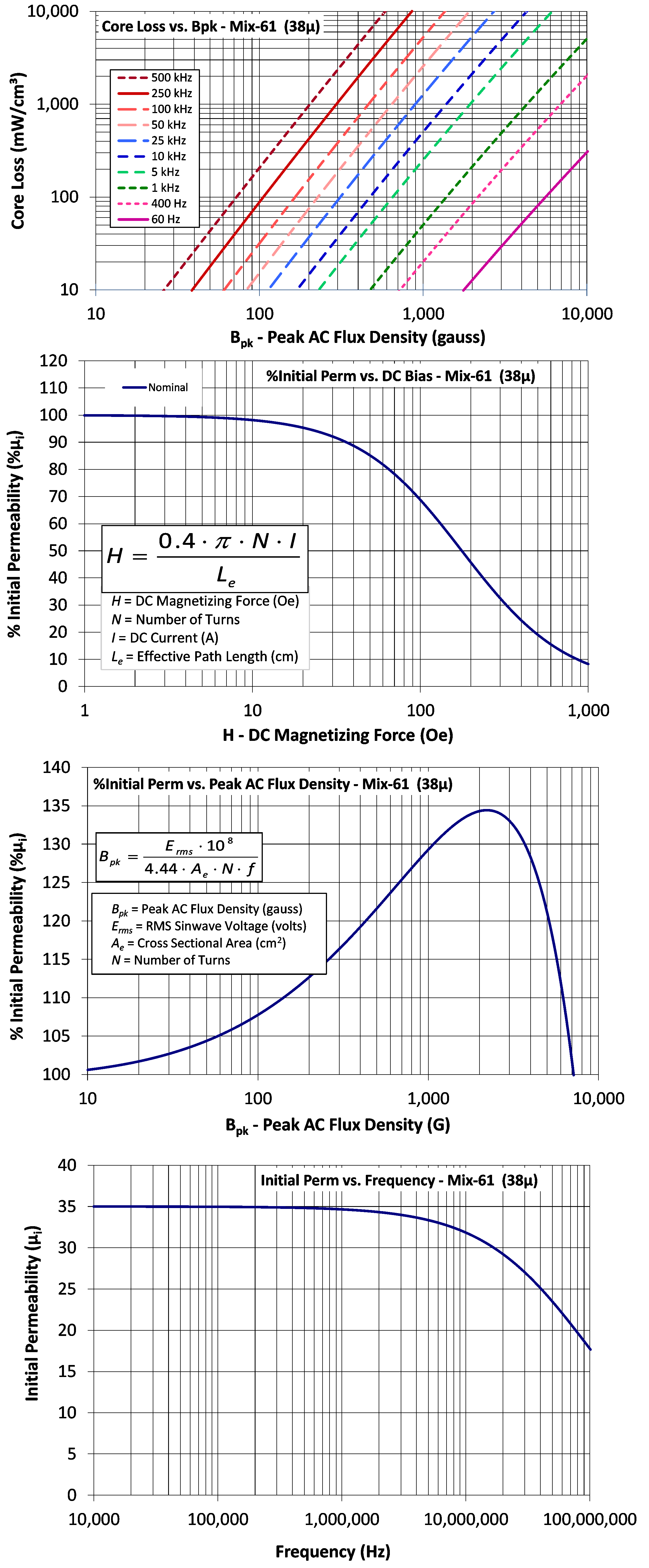

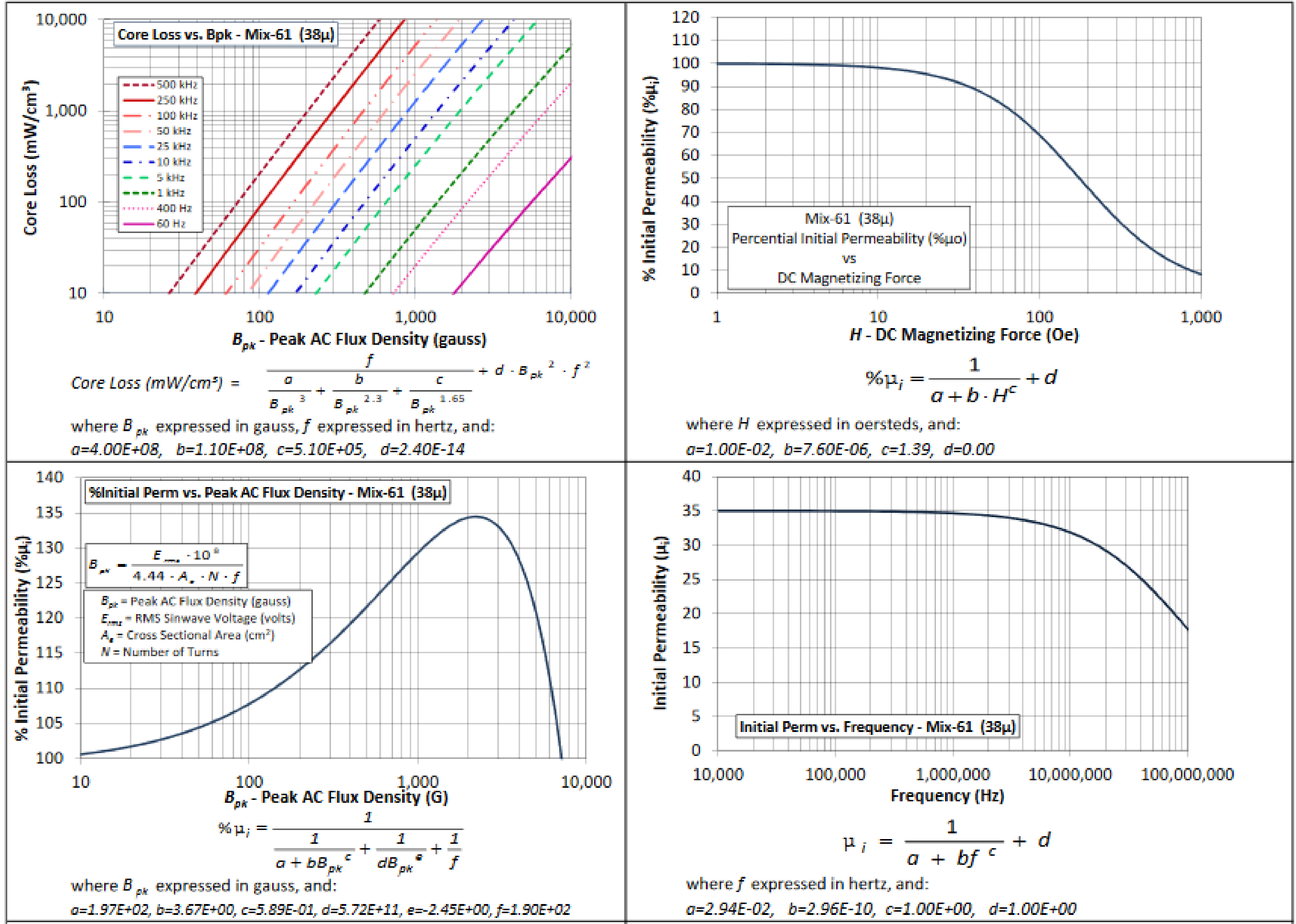

Q-Kurven Material 61
|
Material 61 | ||
|
µi (reference) |
38 |
|
|
Color |
Braun/Grau | |
|
Density |
6.1 gm/cm3 | |
|
Bsat |
14.4 kG | |
|
Core Loss (100kHz, 140g) |
69 mW/cm³ (nom) 79 mW/cm³ (max) | |
|
%Perm at DC Bias (100 Oe) |
68.8% (nom) 63.1% (min) | |
|
