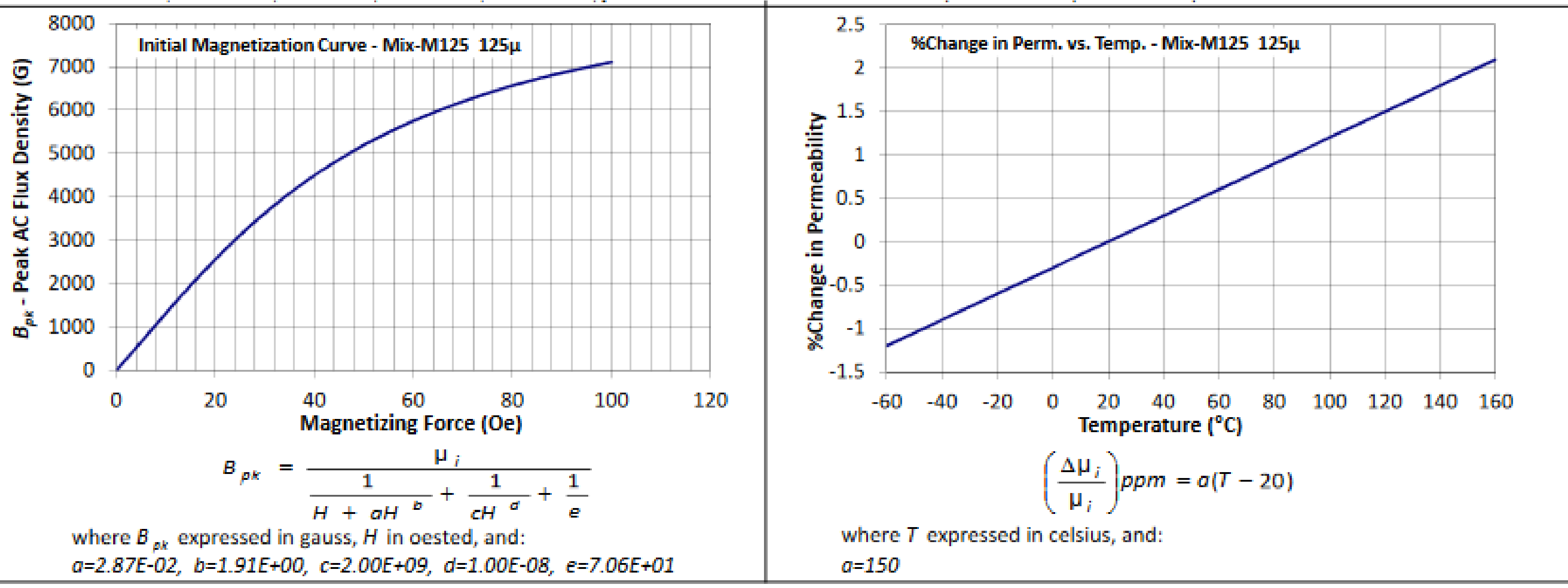

Q-Kurven Material M125

Material M125

µi (reference)

125

Color

Hellblau/Hellblau

Density

7.4 gm/cm3

Bsat

8.6 kG

Core Loss (100kHz, 140g)

13 mW/cm³ (nom)

15 mW/cm³ (max)

  %Perm at DC Bias (50 Oe)

46.8% (nom)

39.4% (min)
